Symptom Troubleshooting [Power Window System (Auto-Open/Close Function)]
›
Power Window System Wiring Diagram [Power Window Systems (Auto-Open/Close Function)]
›
Power Window Main Switch
Power Window Main Switch

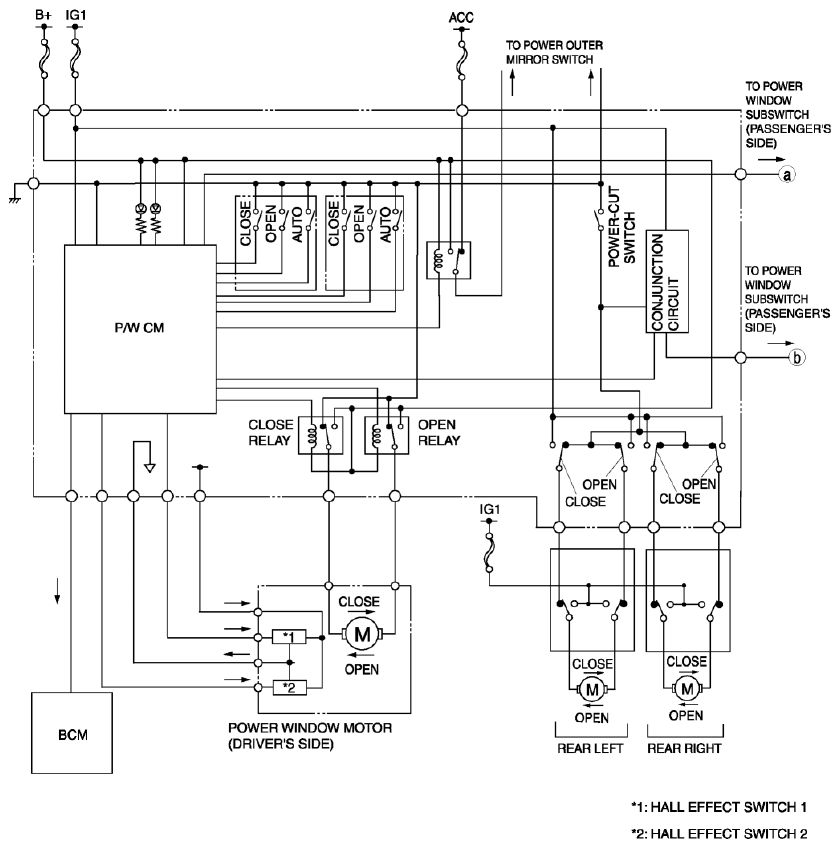

Fig 1: Power Window System Wiring Diagram - Power Window Main Switch (Auto-Open/Close Function)
