Auto Reverse Pinch Protection Function Inspection

STEP	INSPECTION		ACTION
1	Switch the ignition to on. Fully open the driver's side power window. Set the hammer (thickness: 10 mm {0.39 in} or more  ) as shown below. Then, close the power window. Verify that the power window opens 200 mm after contacting the hammer and the operation stops. Does auto reverse pinch protection function operate properly?	Yes	Auto reverse pinch protection function is normal. Perform the two-step down function inspection.
		No	Go to the next step.
2	Does power window open before contacting the hammer?	Yes	Go to NO.6 DOOR GLASS REVERSES EVEN THOUGH THE GLASS DOES NOT ENCOUNTER A FOREIGN OBJECT WHILE IT IS MOVING UP IN AUTOMATIC MODE [POWER WINDOW SYSTEMS (WITHOUT EXTERIOR OPEN FUNCTION)] .
		No	Initialize the power window main switch. NOTE: Before initializing the power window main switch, cut off the power supply to the power window main switch for 60 seconds. Then, reconnect it again after 60 seconds: Disconnect the negative battery cable. Disconnect the power window main switch connector. Remove the fuse for the power window system.

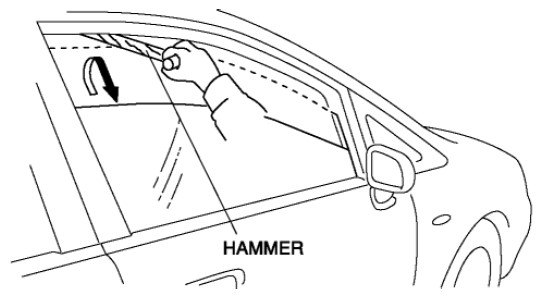

Fig 1: Inspecting Auto Reverse Pinch Protection Function
