Dynamic Stability Control System Wiring Diagram [Dynamic Stability Control (DSC)]

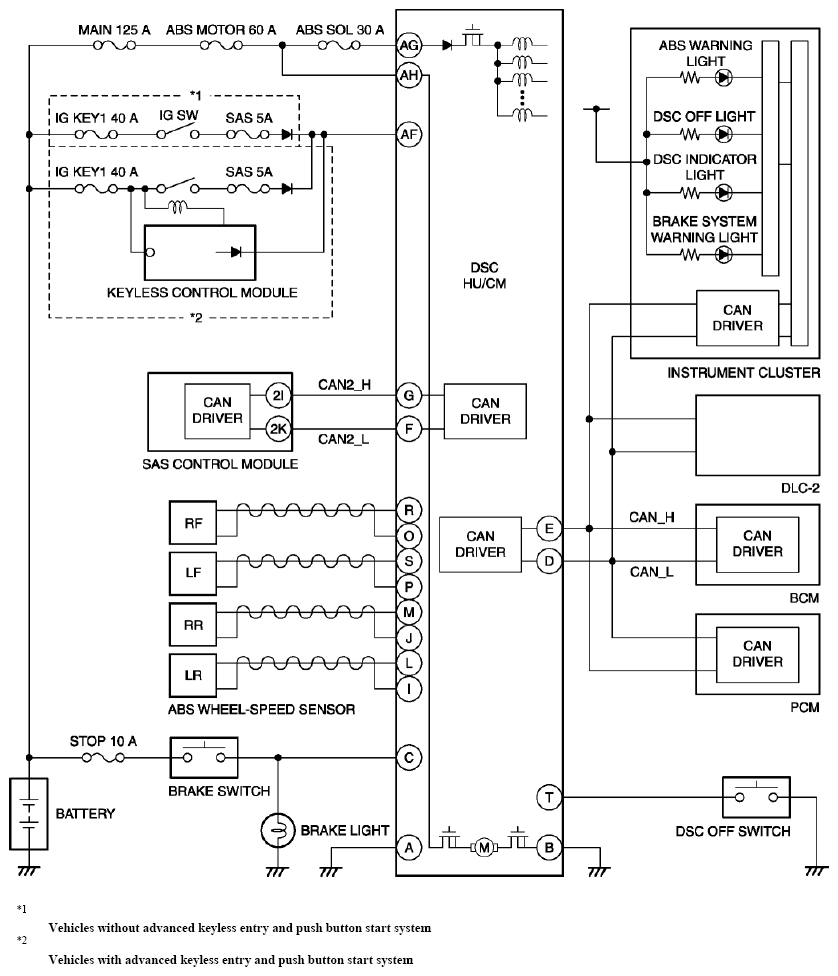

Fig 1: Dynamic Stability Control System Wiring Diagram
G08141132
