Intake Air Temperature (IAT) Sensor Inspection
›
IAT Sensor Resistance
IAT Sensor Resistance
IAT (°C {°F})
Resistance (kilohm)
10 {50}
Approx. 58.75
20 {68}
Approx. 37.30
30 {86}
Approx. 24.27
60 {140}
Approx. 7.70

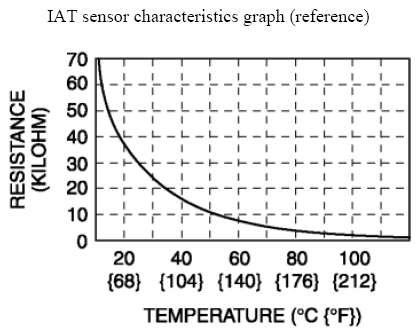

Fig 1: IAT Sensor Characteristics Graph
