Front Side Marker Light Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fasteners, then slightly bend back the mudguard.
  3. Disconnect the front side marker light connector.
  4. Remove tab A by pressing it in the direction of the arrow shown in the figure.

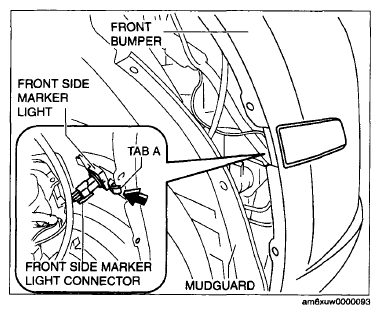

    Fig 1: Removing Front Side Marker Light Tab A
    G06201047Courtesy of MAZDA MOTORS CORP.
  5. Remove the front side marker light by pulling it in the direction of the arrow shown in the figure.
    6. Fig 2: Removing Front Side Marker Light
    G06201048Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
