High-Mount Brake Light Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Open the trunk lid.

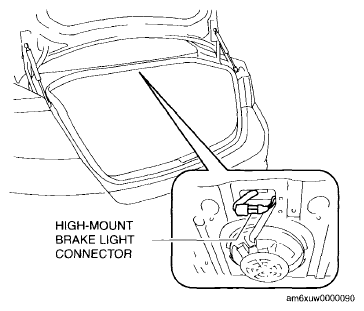

Disconnect the high-mount brake light connector shown in the figure.

Fig 1: Identifying High-Mount Brake Light Connector
Courtesy of MAZDA MOTORS CORP.
Lift up the high-mount brake light in the direction of the arrow and detach the tabs.

Fig 2: Lifting High-Mount Brake Light
Courtesy of MAZDA MOTORS CORP.
Pull the high-mount brake light in the direction of the arrow shown in the figure to detach the hooks and pin.

Fig 3: Pulling High-Mount Brake Light

Courtesy of MAZDA MOTORS CORP.

Remove the high-mount brake light.
Install in the reverse order of removal.
