Audio Amplifier Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Front scuff plate (RH). See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
2. Front side trim (RH). See FRONT SIDE TRIM REMOVAL/INSTALLATION .
3. Glove compartment. See GLOVE COMPARTMENT REMOVAL/INSTALLATION .
Remove in the order indicated in the table.

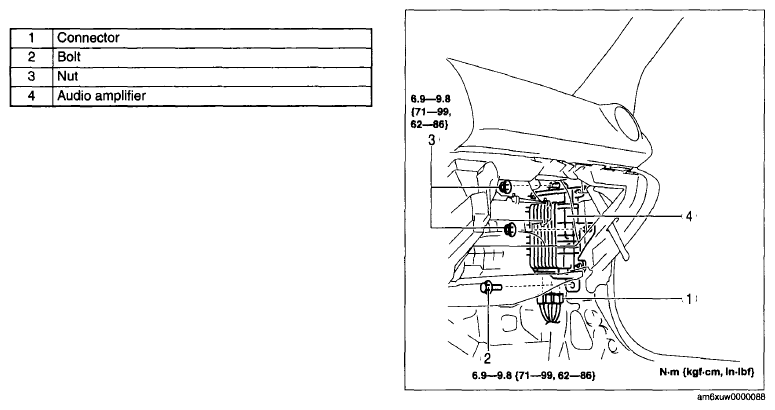

Fig 1: Identifying Audio Amplifier, Connector, Bolt And Nut
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
