Front Door Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the inner garnish. See INNER GARNISH REMOVAL/INSTALLATION .
Remove the front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
Remove in the order indicated in the table.
With Bose®

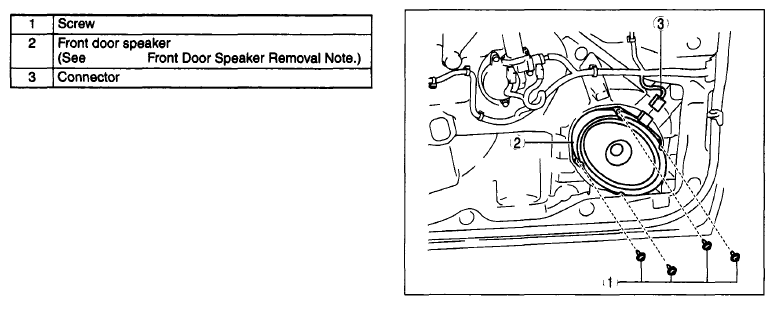

Fig 1: Identifying Front Door Speaker Bolts
Courtesy of MAZDA MOTORS CORP.

Without Bose®

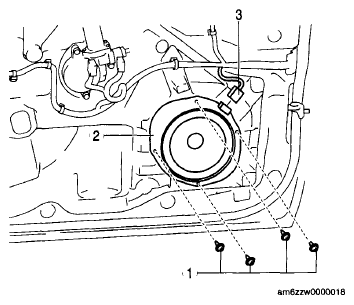

Fig 2: Identifying Front Door Speaker Bolts (Without Bose®)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
