Disc Pad (Front) Replacement: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

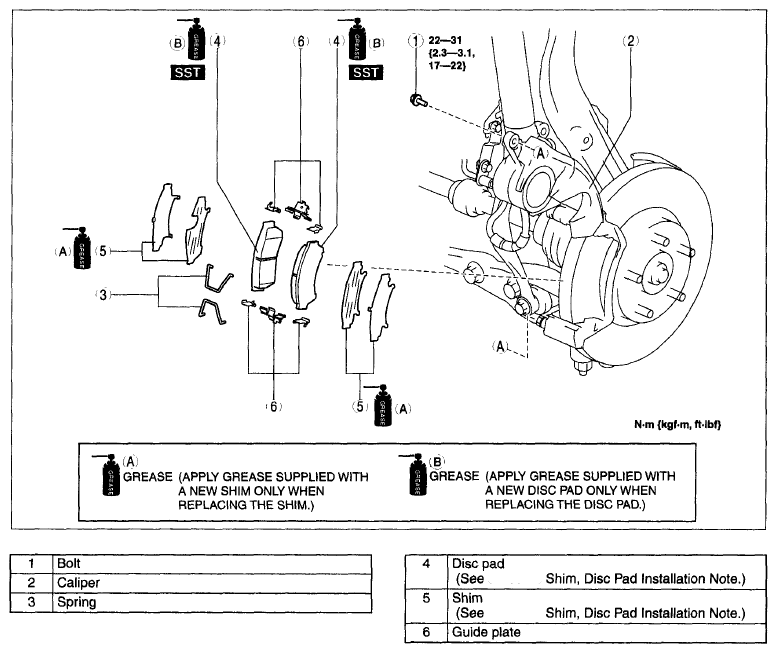

Fig 1: Disc Pad Removal/Installation Order With Torque Specifications (Front)
Courtesy of MAZDA MOTORS CORP.
