No. 2 All Keyless Entry System Functions Inoperative [Keyless Entry System]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, verify that the connectors, terminals and wiring harnesses are connected correctly and undamaged.

TROUBLESHOOTING CHART

2	All on-board diagnostic functions inoperative

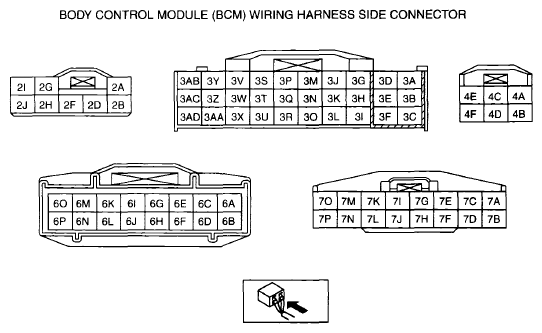

DESCRIPTION	Malfunction in BCM power supply circuit, door latch switch circuit, BCM ground circuit, or keyless receiver
POSSIBLE CAUSE	Malfunction in IG1 or power supply signal circuit of BCM BCM power supply fuse malfunction Malfunction in wiring harness between BCM power supply fuses and BCM Malfunction in door open/closed signal circuit of BCM Door latch switch system malfunction BCM malfunction Malfunction in wiring harness between BCM and door latch switch Malfunction in BCM GND signal circuit Malfunction in wiring harness between BCM and ground Malfunction in keyless receiver Keyless receiver malfunction Malfunction in wiring harness between keyless receiver and BCM
Courtesy of MAZDA MOTORS CORP.

All on-board diagnostic functions inoperative

DESCRIPTION

Malfunction in BCM power supply circuit, door latch switch circuit, BCM ground circuit, or keyless receiver

POSSIBLE CAUSE

Malfunction in IG1 or power supply signal circuit of BCM
- BCM power supply fuse malfunction
- Malfunction in wiring harness between BCM power supply fuses and BCM
Malfunction in door open/closed signal circuit of BCM
- Door latch switch system malfunction
- BCM malfunction
Malfunction in wiring harness between BCM and door latch switch
Malfunction in BCM GND signal circuit
- Malfunction in wiring harness between BCM and ground
Malfunction in keyless receiver

Keyless receiver malfunction
Malfunction in wiring harness between keyless receiver and BCM

Courtesy of MAZDA MOTORS CORP.
