Front Stabilizer Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the power steering fluid.
  2. Remove the steering shaft cover. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] . See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .
  3. Disconnect the steering shaft from the steering gear and linkage. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] . See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .
  4. Remove the front mudguard. See FRONT MUDGUARD REMOVAL/INSTALLATION .
  5. Remove the aerodynamic under cover No. 2. (L5). See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .
  6. Remove the front pipe.(MZI-3.7). See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .
  7. Remove the transverse member. See TRANSVERSE MEMBER REMOVAL/INSTALLATION .
  8. Remove in the order indicated in the table.
  9. Install in the reverse order of removal.
  10. Add the power steering fluid. See AIR BLEEDING .
  11. Inspect the front wheel alignment. See FRONT WHEEL ALIGNMENT .

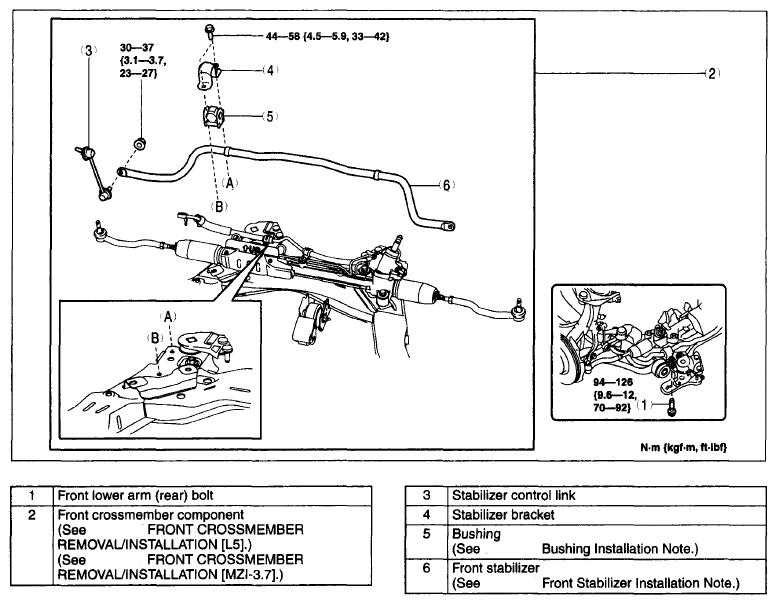

    Fig 1: Front Stabilizer Removal/Installation Order With Torque Specifications
    G06199932Courtesy of MAZDA MOTORS CORP.
