Dashboard Disassembly/Assembly
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the ventilator grilles. See VENTILATOR GRILLE REMOVAL/INSTALLATION .

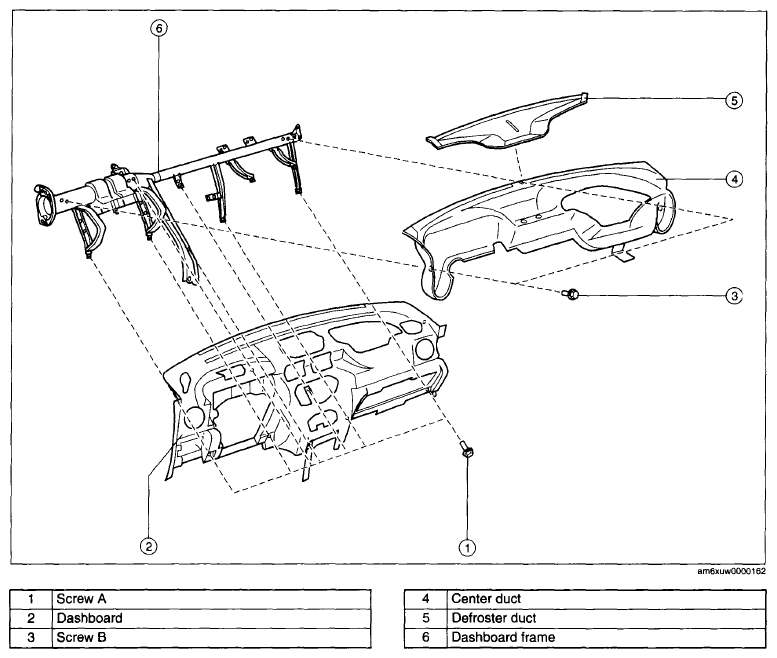

- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
