Clutch Master Cylinder Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

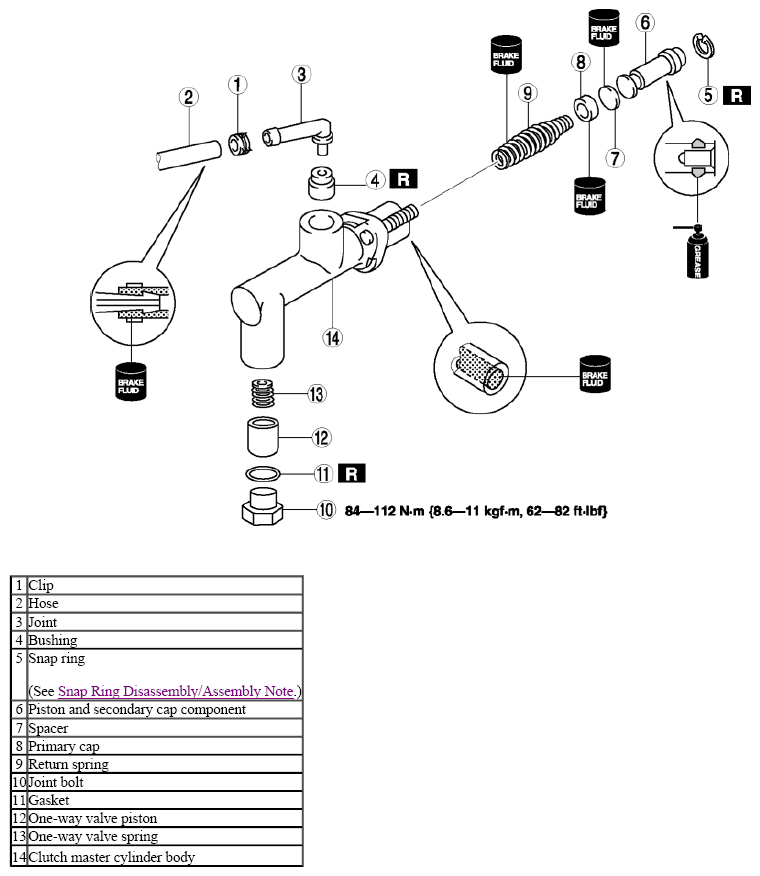

Fig 1: Clutch Master Cylinder Components With Torque Specifications
