Child-Restraint Seat Anchor Removal/Installation

  1. Remove the cover.

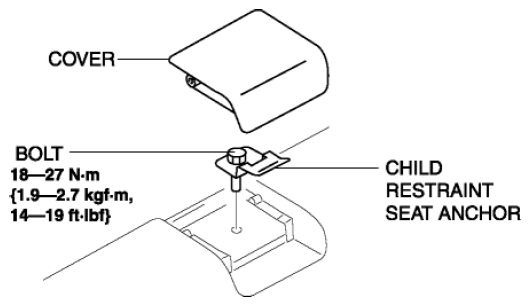

    Fig 1: Child-Restraint Seat Anchor Cover And Bolt With Torque Specification
    G08143875
  2. Remove the bolt and child-restraint seat anchor.
  3. Install in the reverse order of removal.
