Front Buckle Removal/Installation

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable.
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Remove the front buckle connector.
  5. Remove the bolt.

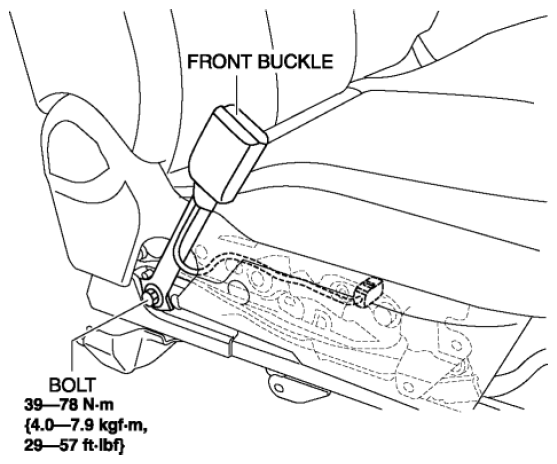

    Fig 1: Front Buckle Bolt With Torque Specification
    G08143869
  6. Remove the front buckle.
  7. Install in the reverse order of removal.
