Automatic Transaxle Shift Mechanism Location Index

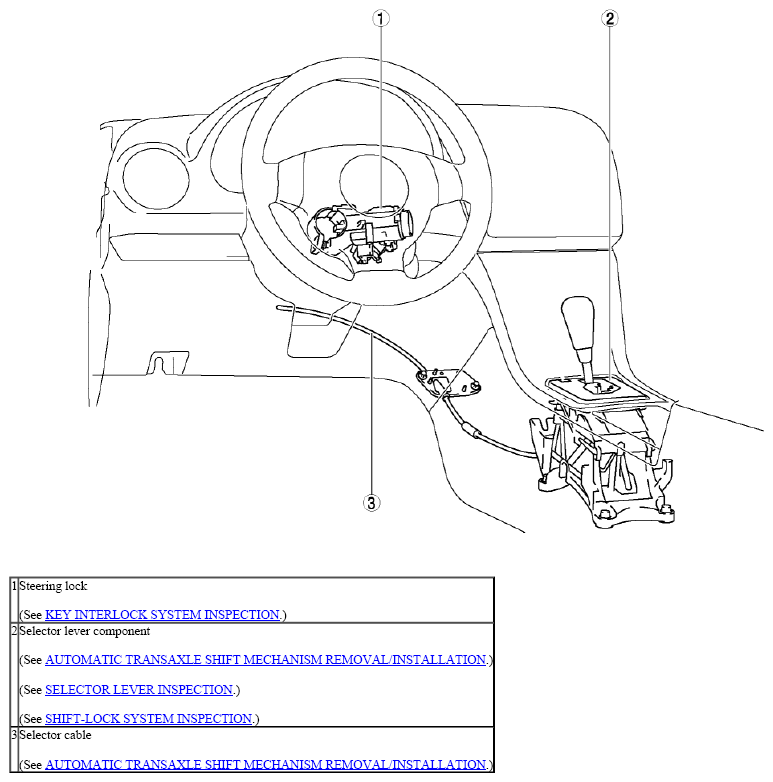

Fig 1: Identifying Automatic Transaxle Shift Mechanism Components Location
G08143328
