Shift-Lock Solenoid Inspection

CAUTION:

Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

Disconnect the selector lever component connector.
1. Disconnect the negative battery cable.
2. Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)
3. Disconnect the selector lever component connector.

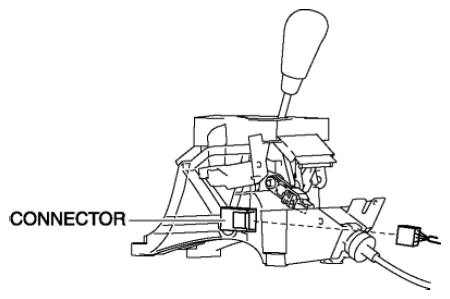

  Fig 1: Identifying Selector Lever Component Connector

According to the table, measure the voltage between selector lever component terminals and body GND.

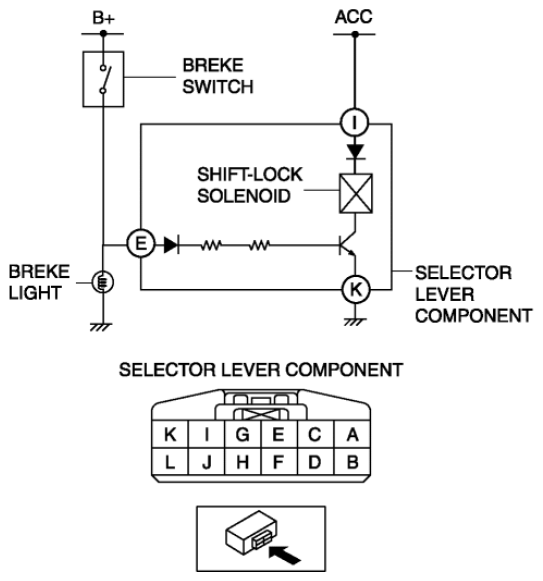

Fig 2: Identifying Selector Lever Component Connector Terminals

G08143338

If there is any malfunction, repair or replace the related wiring harness.
If there is no malfunction, replace the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

VOLTAGE SPECIFICATION

Terminal	Connected to	Test condition	Voltage (V)
E-GND	Brake switch	Brake pedal depressed	B+
E-GND	Brake switch	Brake pedal released	Below 1.0
I-GND	Ignition switch	Switch the ignition to ACC or ON	B+
I-GND	Ignition switch	Switch the ignition to off	Below 1.0
K-GND	Body GND	Under any conditions	Below 1.0
