Front Power Window Regulator Removal/Installation

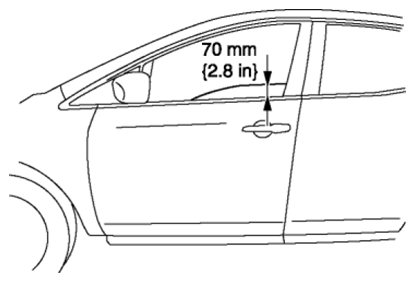

To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 70 mm {2.8 in}.

Fig 1: Identifying Distance Between Top Of Front Door Glass To Upper Part Of Front Beltline Molding
Disconnect the negative battery cable.
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
5. Power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
6. Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)

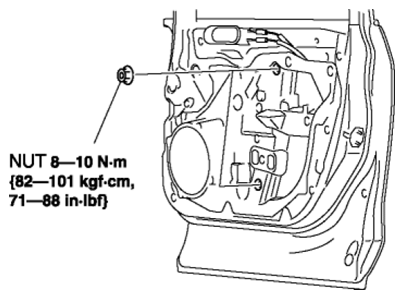

Remove the nuts.

Fig 2: Front Door Nuts With Torque Specifications

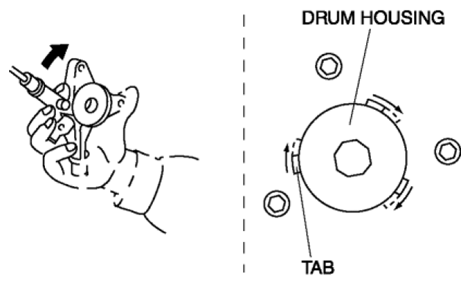

Insert a hand through the speaker installation hole, rotate the drum housing in the direction shown in the figure to detach the tabs from the front door unit.

Fig 3: Rotating Drum Housing

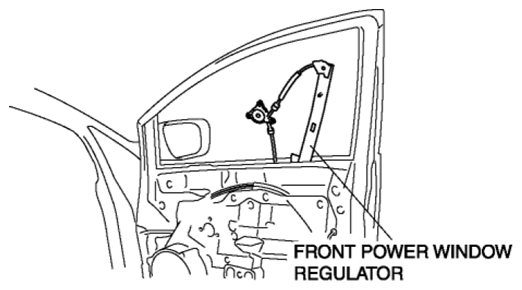

Remove the front power window regulator as shown in the figure.

Fig 4: Identifying Front Power Window Regulator
Install in the reverse order of removal.
CAUTION:
- Make sure the cable does not unspool from the drum housing when installing.
