Glass/Windows/Mirrors Location Index

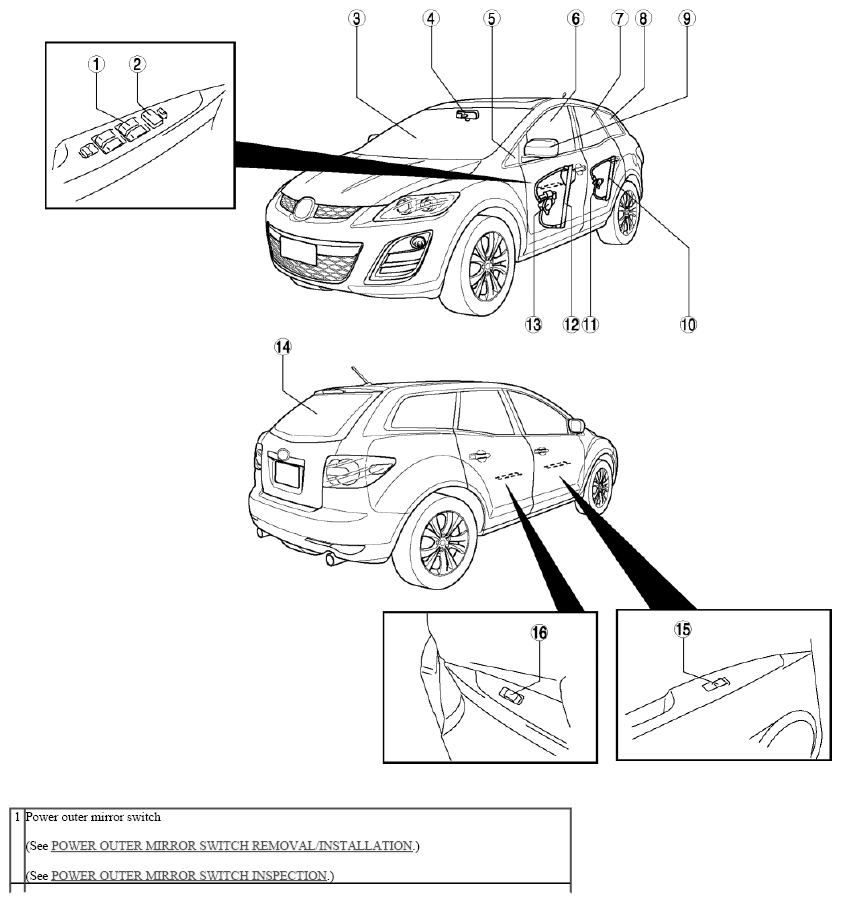

Fig 1: Glass/Windows/Mirrors Components Location

G08245895

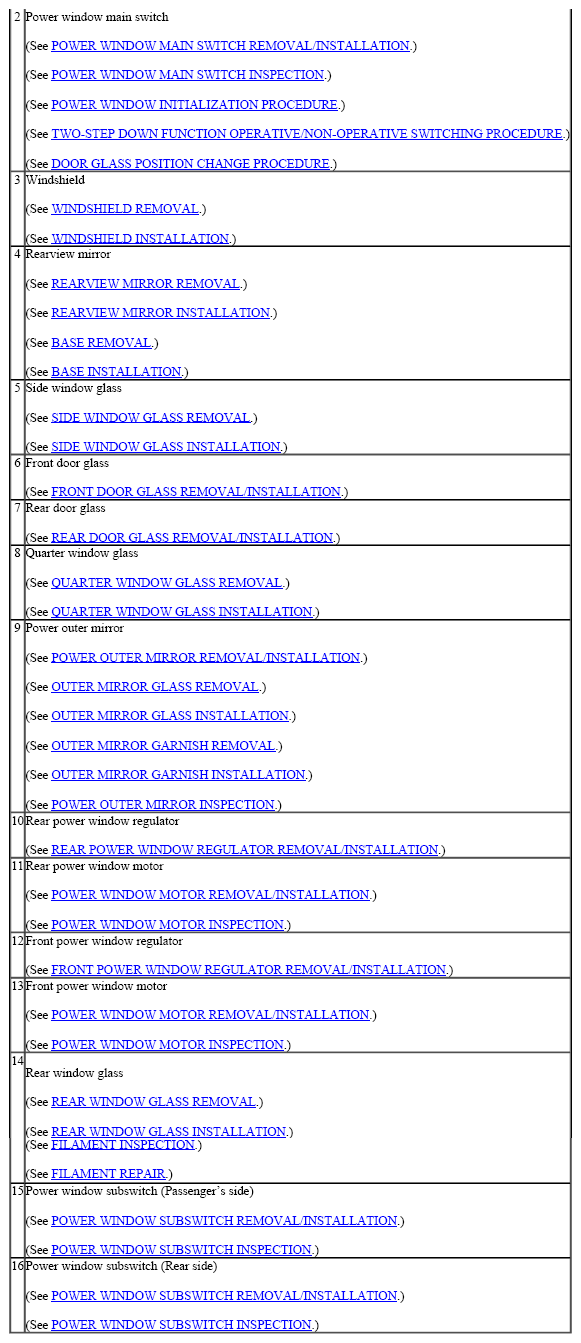

Fig 2: Glass/Windows/Mirrors Location Index

G08245896
