Power Window Main Switch Inspection
NOTE:
- Before proceeding with diagnosis of malfunctioning power windows, ensure the POWER WINDOW INITIALIZATION PROCEDURE has been performed.
- Measure the voltage at each terminal (other than terminals 1N and 2A).
- If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "inspection item(s)" and related wiring harnesses.
- Disconnect the negative battery cable.
- Inspect the power window main switch connector for continuity at terminal 1N and 2A.
- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.

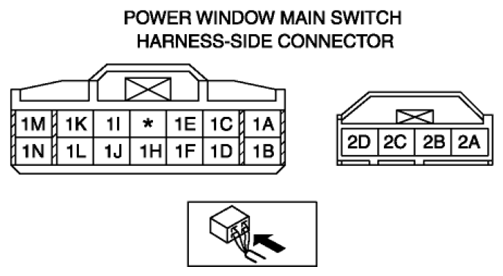

| Terminal | Signal Name | Connected To | Measured Condition | Voltage (V) | Inspection Item (s) |
|---|---|---|---|---|---|
| 1A | IG 1 | P.WIND2 30 A fuse | Ignition switch is at ON position | B+ |
|
| Ignition switch is at LOCK position | 1.0 or less | ||||
| 1B | Open output | Rear power window motor (Left-side) | While rear door glass is opening (Left-side) | B+ |
|
| While rear door glass is closing (Left-side) | 1.0 or less | ||||
| 1C | Close output | Driver-side front power window motor | While driver-side door glass is opening | 1.0 or less |
|
| While driver-side door glass is closing | B+ | ||||
| 1D | Close output | Rear power window motor (Left-side) | While rear door glass is opening (Left-side) | 1.0 or less |
|
| While rear door glass is closing (Left-side) | B+ | ||||
| 1E | Close output | Driver-side front power window motor | While driver-side door glass is opening | 1.0 or less |
|
| While driver-side door glass is closing | B+ | ||||
| 1F | ACC | P.MIR 7.5 A fuse | Ignition switch is at ACC position | B+ |
|
| Ignition switch is at LOCK position | 1.0 or less | ||||
| 1H | Communication | BCM | Terminal used for communication therefore determination based on terminal voltage inspection not possible. | ||
| 1I | Close output | Passenger-side front power window motor | While passenger-side door glass is opening | 1.0 or less |
|
| While passenger-side door glass is closing | B+ | ||||
| 1J | Open output | Rear power window motor (Right-side) | While rear door glass is opening (Right-side) | B+ |
|
| While rear door glass is closing (Right-side) | 1.0 or less | ||||
| 1K | Open output | Passenger-side front power window motor | While passenger-side door glass is opening | B+ |
|
| While passenger-side door glass is closing | 1.0 or less | ||||
| 1L | Close output | Rear power window motor (Right-side) | While rear door glass is opening (Right-side) | 1.0 or less |
|
| While rear door glass is closing (Right-side) | B+ | ||||
| 1N | GND | Body ground | Under any condition | 1.0 or less |
|
| 1M | Power supply | P.WIND 30 A fuse | Under any condition | B+ |
|
| 2A | Sensor ground | Power window motor | Under any condition | 1.0 or less |
|
| 2B | Power supply | Power window motor | While IG ON or IG OFF timer works | B+ |
|
| 2D | Pulse 1 | Power window motor | Door glass is not in motion | 1.0 or less or B+ |
|
| Door glass is in motion | Alternates between 0 and B+ | ||||
| 2C | Pulse 2 | Power window motor | Door glass is in motion | Alternates between 1.0 or less and B+ |
|
| Door glass is not in motion | 1.0 or less or B+ | ||||
