Side Window Glass Removal: Notes

  1. Remove the A-pillar lower trim. (See A-PILLAR LOWER TRIM REMOVAL/INSTALLATION )
  2. Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION )
  3. Apply protective tape along the edge of the body and the side window glass.

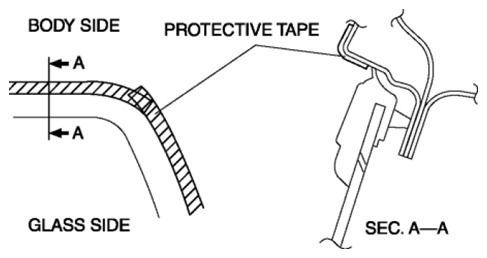

    Fig 1: Identifying Protective Tape Application Areas On Edge Of Body And Side Window Glass
    G08245944
