TCS Off Switch Inspection

Remove the TCS OFF switch. (See TCS OFF SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

Fig 1: Identifying TCS OFF Switch Connector Terminals
- If not as indicated in the table, replace the TCS OFF switch.

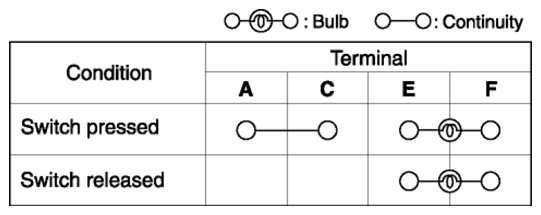

Fig 2: TCS OFF Switch Connector Terminals Continuity Chart
