Home › Mazda › 2012 › CX-7 i Touring, 2.5L Eng VIN 5 › Repair and Diagnosis › Brakes › Traction Control › Antilock Brake System And Dynamic Stability Control System › TCS Off Switch Removal/Installation › Notes

TCS Off Switch Removal/Installation: Notes

  1. Remove in the order indicated in the table.

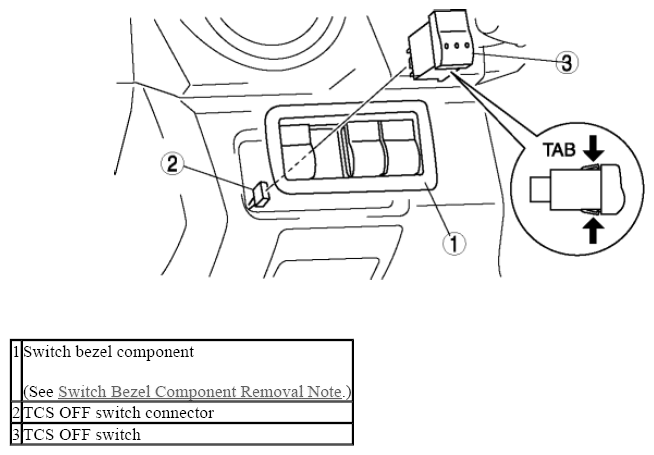

    Fig 1: Identifying TCS OFF Switch Components
    G08245459
  2. Install in the reverse order of removal.
