Engine Control System [2.5L L5]
›
Control System Location Index
Control System Location Index

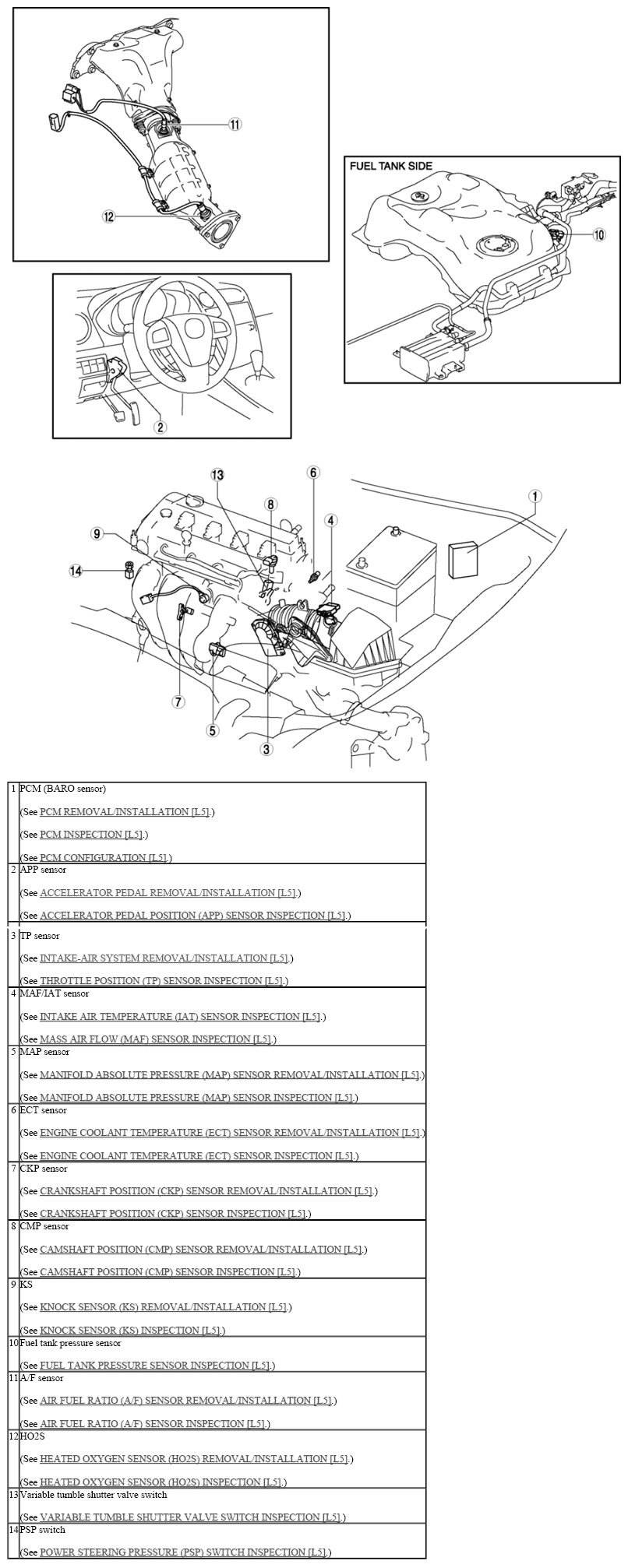

Fig 1: Identifying Control System Components Location
