Engine Control System [2.5L L5]
›
Control System Wiring Diagram
Control System Wiring Diagram

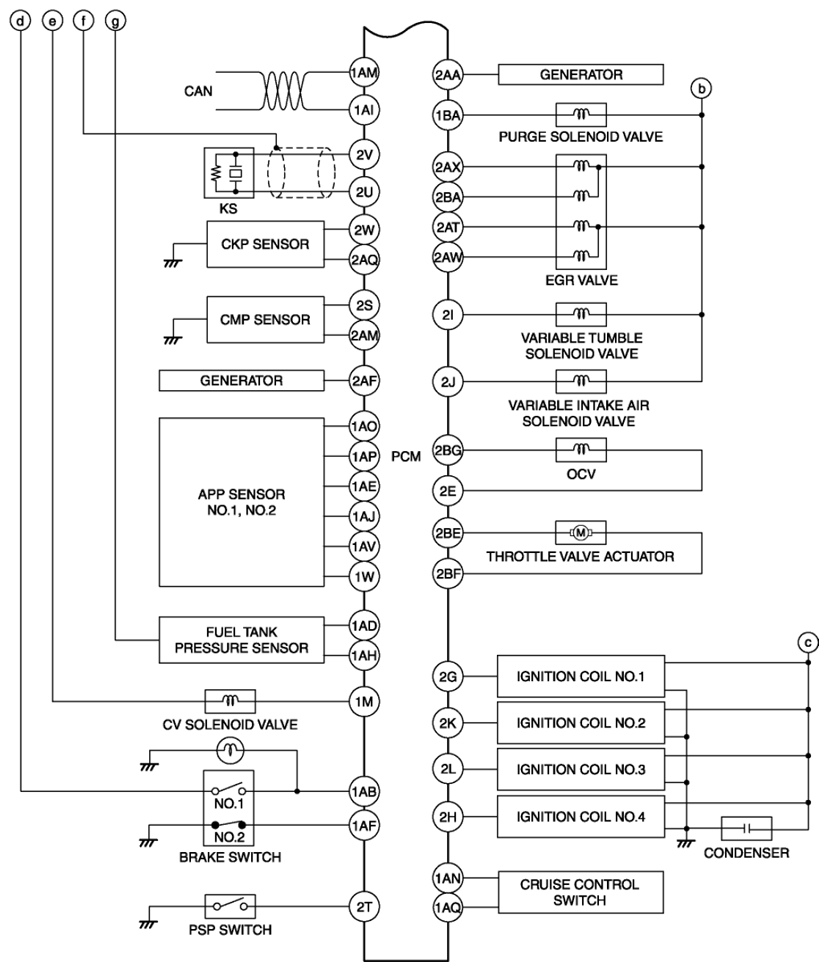

Fig 1: Control System Wiring Diagram [L5] (1 Of 2)

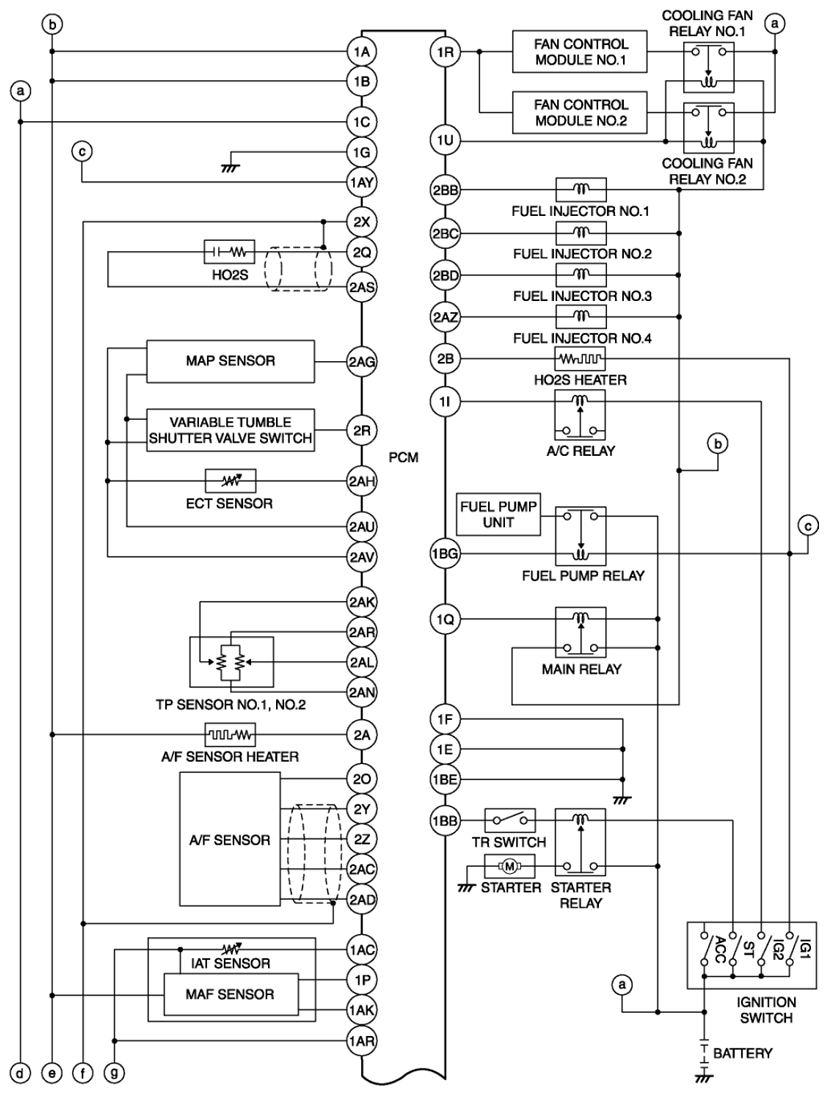

Fig 2: Control System Wiring Diagram [L5] (2 Of 2)
