Crankshaft Position (CKP) Sensor Removal/Installation: Installation

CAUTION:

When foreign material such as an iron chip is on the CKP sensor, it can cause abnormal output from the sensor because of flux turbulence and adversely affect the engine control. Be sure there is no foreign material on the CKP sensor when replacing.

Perform the following procedure so that cylinder No.1 is at TDC.
1. Remove the wheel and tire (front right side).
2. Remove the under cover.
3. Remove the cylinder block lower blind plug and install the SST .

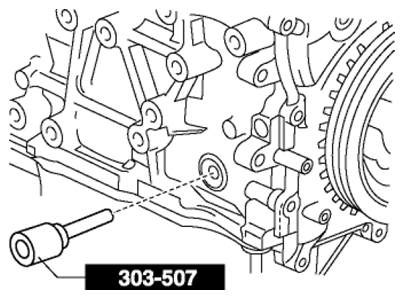

  Fig 1: Identifying SST (303-507)
4. Rotate the crankshaft pulley clockwise until the crank weight contacts the SST so that cylinder No.1 is at TDC.
Fit the center of the CKP sensor with the fifth tooth (counting counterclockwise from the empty space A as shown in the figure) of the pulse wheel.

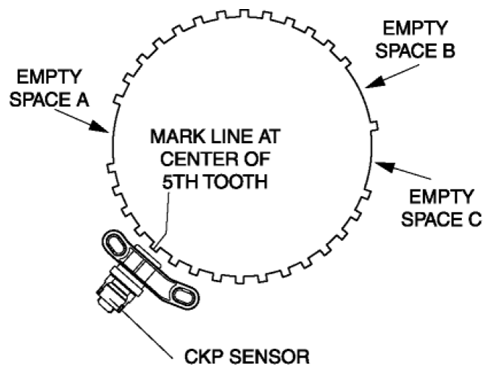

Fig 2: Identifying Pulse Wheel Fifth Tooth (Counting Counterclockwise From Empty Space A)
Install the CKP sensor fitting bolts.

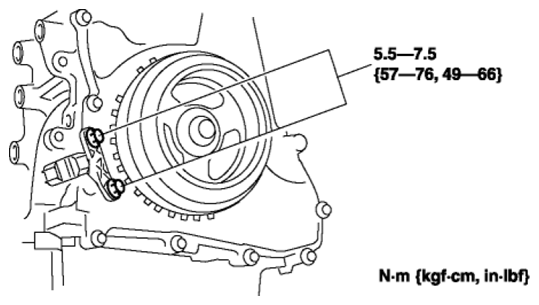

Fig 3: Identifying CKP Sensor Fitting Bolts
Remove the SST then install the cylinder block lower blind plug.

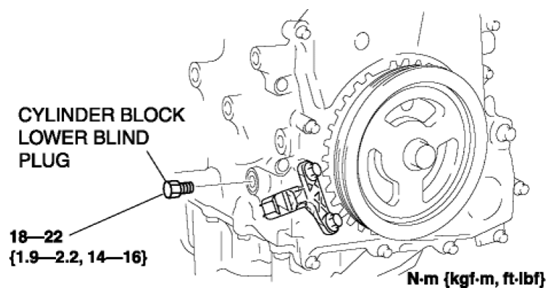

Fig 4: Identifying Cylinder Block Lower Blind Plug
