Manifold Absolute Pressure (Map) Sensor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the MAP sensor connector.
  3. Remove the MAP sensor.

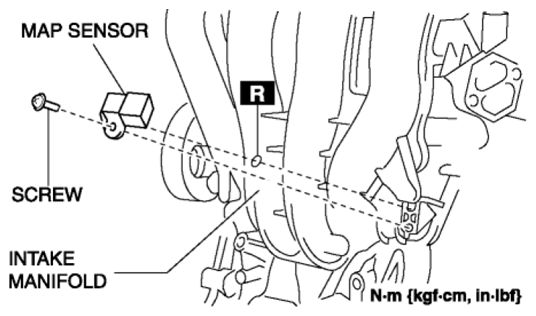

    Fig 1: Identifying MAP Sensor And Screw
    G08245125
  4. Install in the reverse order of removal.
