Inspection Using An Oscilloscope (Reference)
›
A/F sensor heater control
A/F sensor heater control

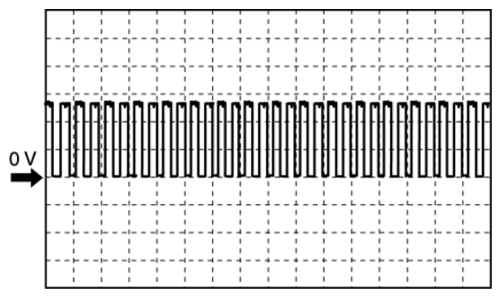

Fig 1: A/F Sensor Heater Control Voltage Graph
PCM terminals
2A(+)-body ground(-)
Oscilloscope setting
5 V/DIV (Y), 200 ms/DIV (X), DC range
Vehicle condition
Idle (immediately after starting the engine)
