Inspection Using An Oscilloscope (Reference)
›
CMP signal
CMP signal

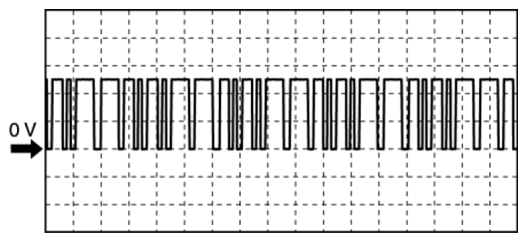

Fig 1: CMP Signal Graph
PCM terminals
2S(+)-body ground(-)
Oscilloscope setting
1 V/DIV (Y), 25 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
