Inspection Using An Oscilloscope (Reference)
›
Cooling fan control
Cooling fan control

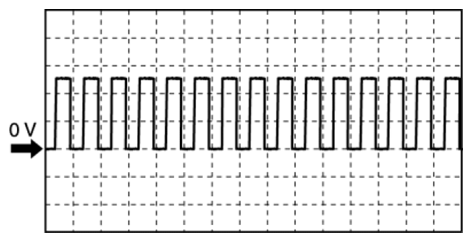

Fig 1: Cooling Fan Control Voltage Graph
PCM terminals
1R(+)-body ground(-)
Oscilloscope setting
5 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
