Generator field coil control

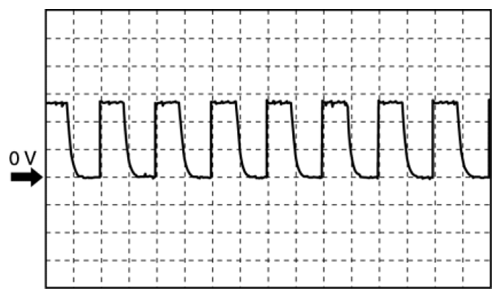

Fig 1: Generator Field Coil Control Voltage Graph

G08245115

PCM terminals

2AA(+)-body ground(-)
Oscilloscope setting
- 0.5 V/DIV (Y), 2 ms/DIV (X), DC range
  Vehicle condition
  - Idle after warm up
