Inspection Using An Oscilloscope (Reference)
›
OCV control signal
OCV control signal

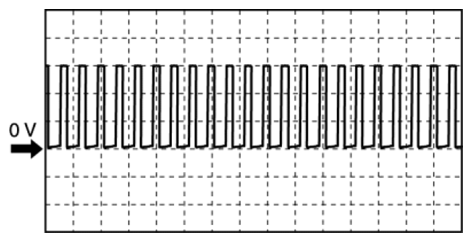

Fig 1: OCV Control Signal Graph
PCM terminals
2E(+)-body ground(-)
Oscilloscope setting
2 V/DIV (Y), 0.8 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
