Inspection Using An Oscilloscope (Reference)
›
Purge control
Purge control

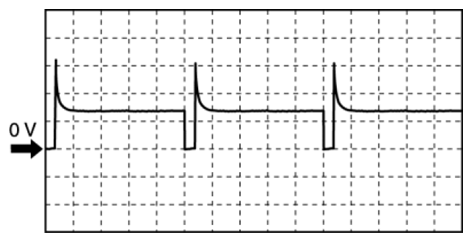

Fig 1: Purge Control Voltage Graph
PCM terminals
1BA(+)-body ground(-)
Oscilloscope setting
10 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
