Symptom Troubleshooting [Engine Control System 2.5L L5]
›
Quick Diagnostic Chart
Quick Diagnostic Chart

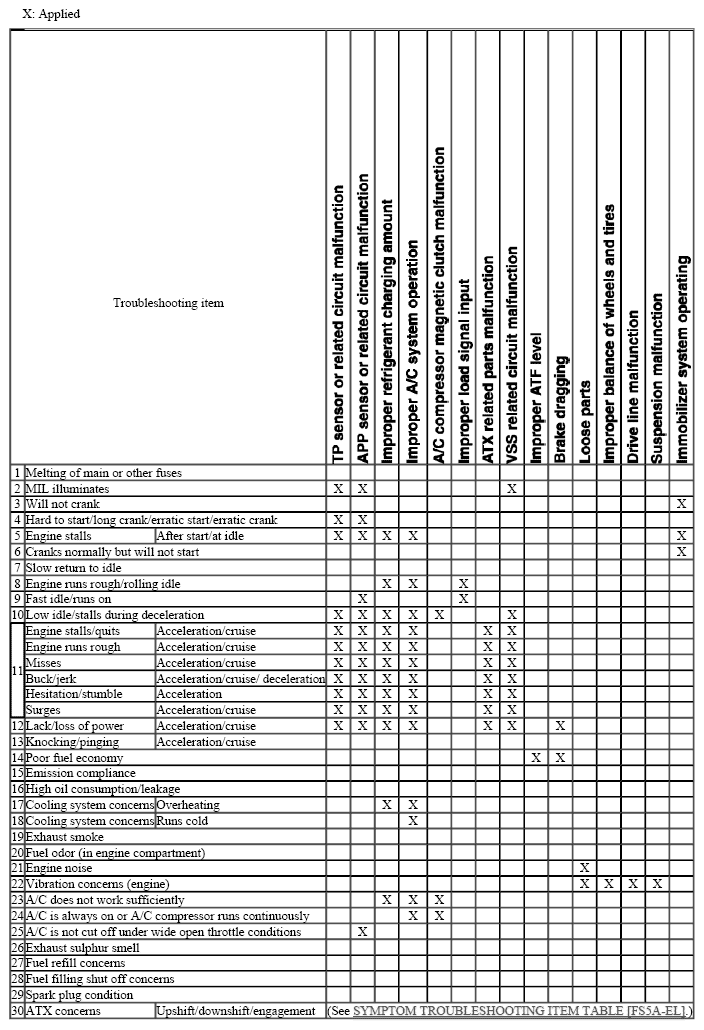

Fig 1: Quick Diagnostic Chart - L5 (1 Of 6)

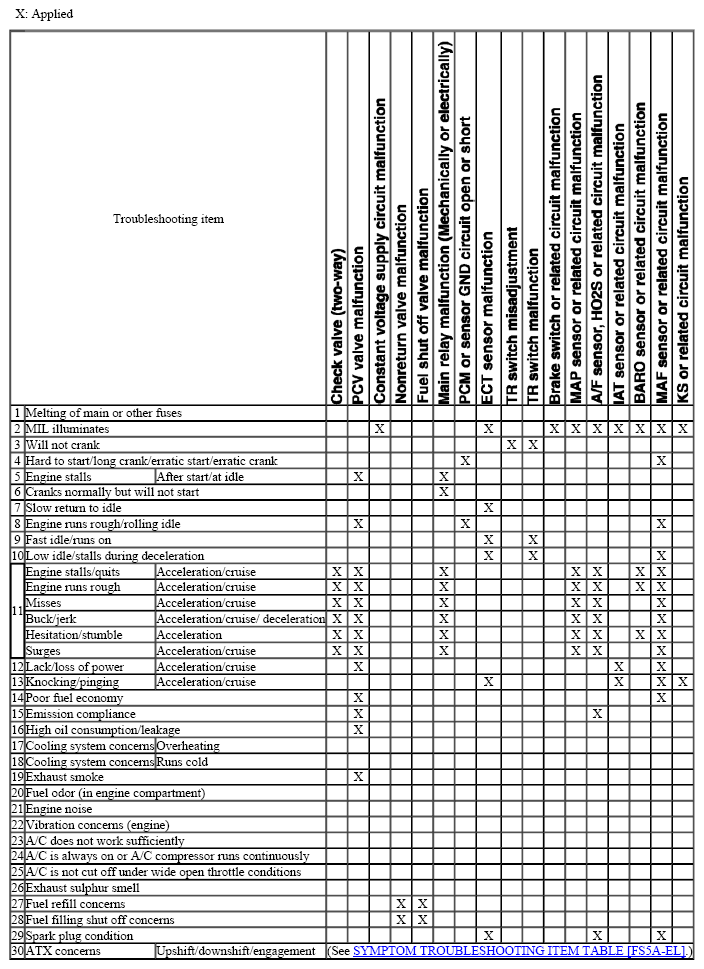

Fig 2: Quick Diagnostic Chart - L5 (2 Of 6)

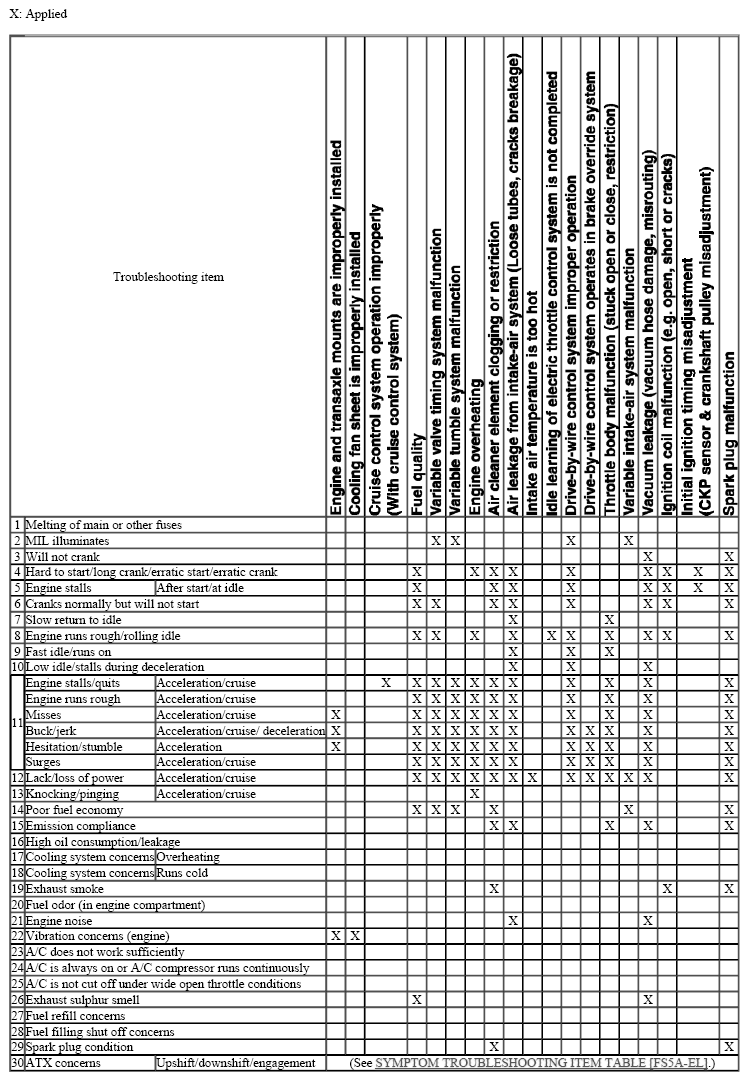

Fig 3: Quick Diagnostic Chart - L5 (3 Of 6)

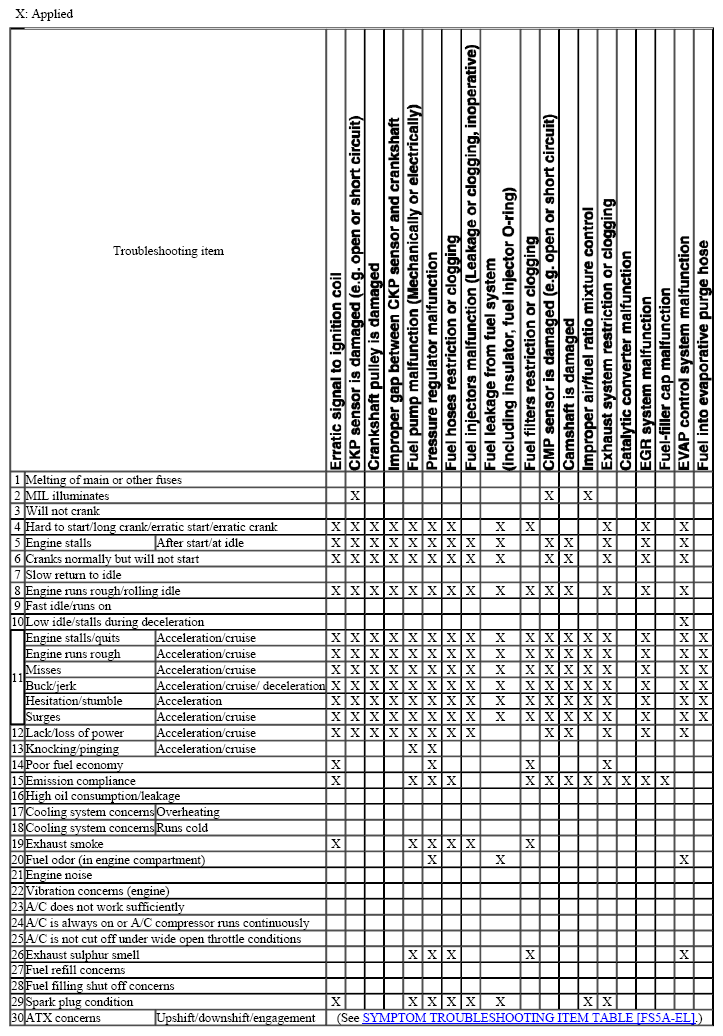

Fig 4: Quick Diagnostic Chart - L5 (4 Of 6)

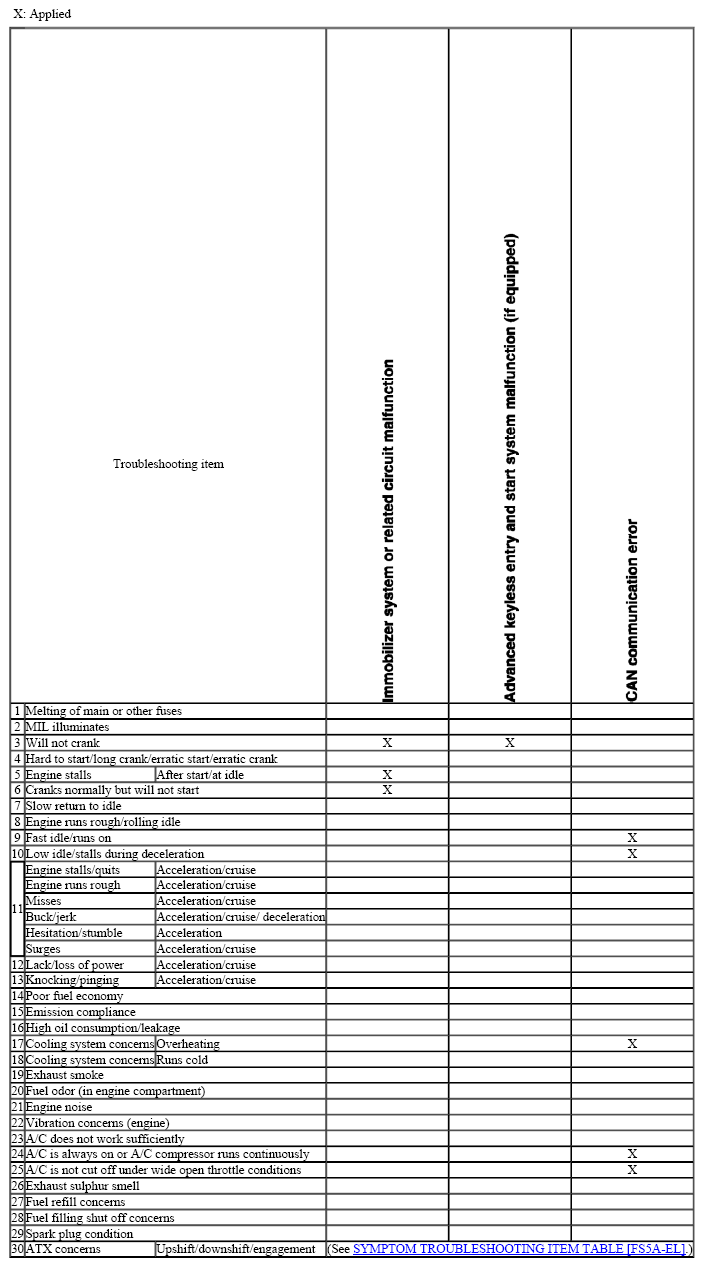

Fig 5: Quick Diagnostic Chart - L5 (5 Of 6)

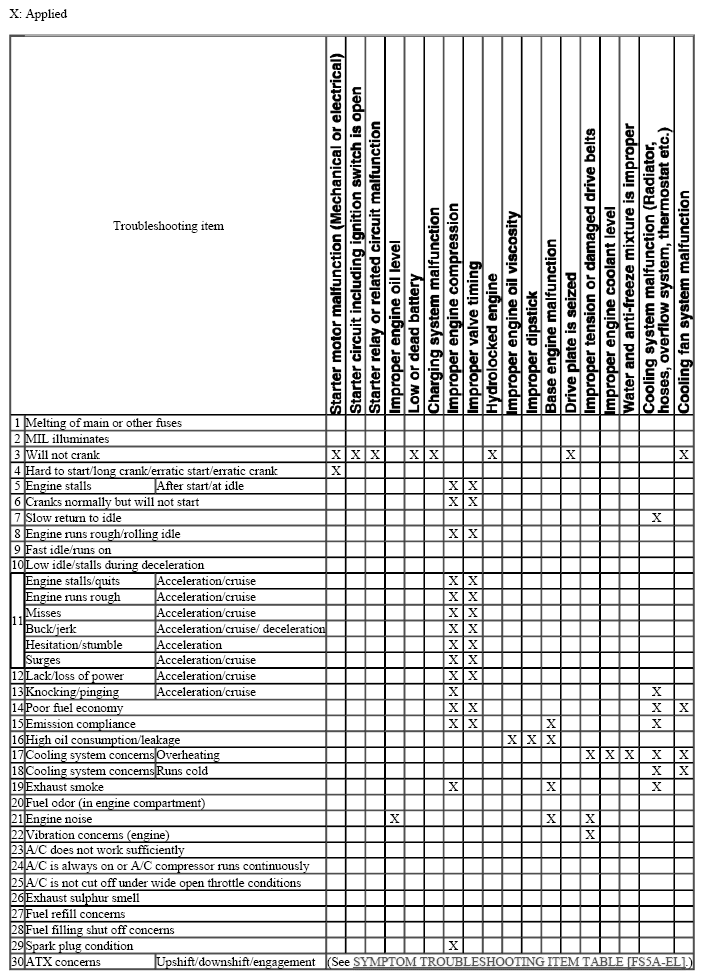

Fig 6: Quick Diagnostic Chart - L5 (6 Of 6)
