Symptom Troubleshooting [Engine Control System MZI-3.7]
›
Quick Diagnostic Chart
Quick Diagnostic Chart

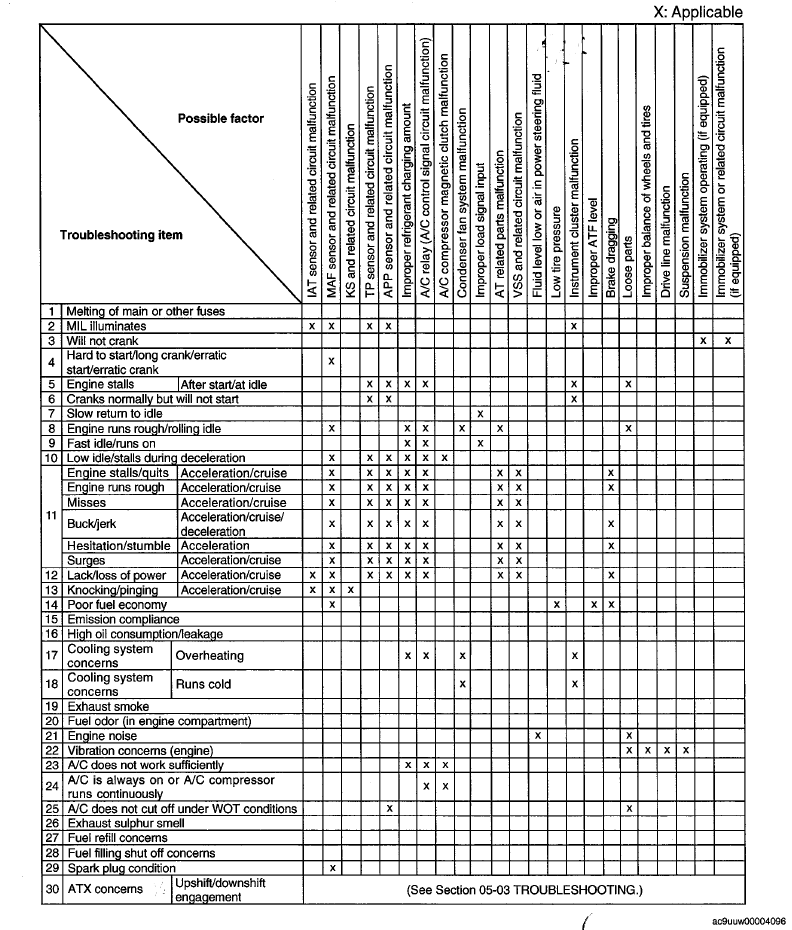

Fig 1: Quick Diagnostic Chart - MZI-3.7 (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

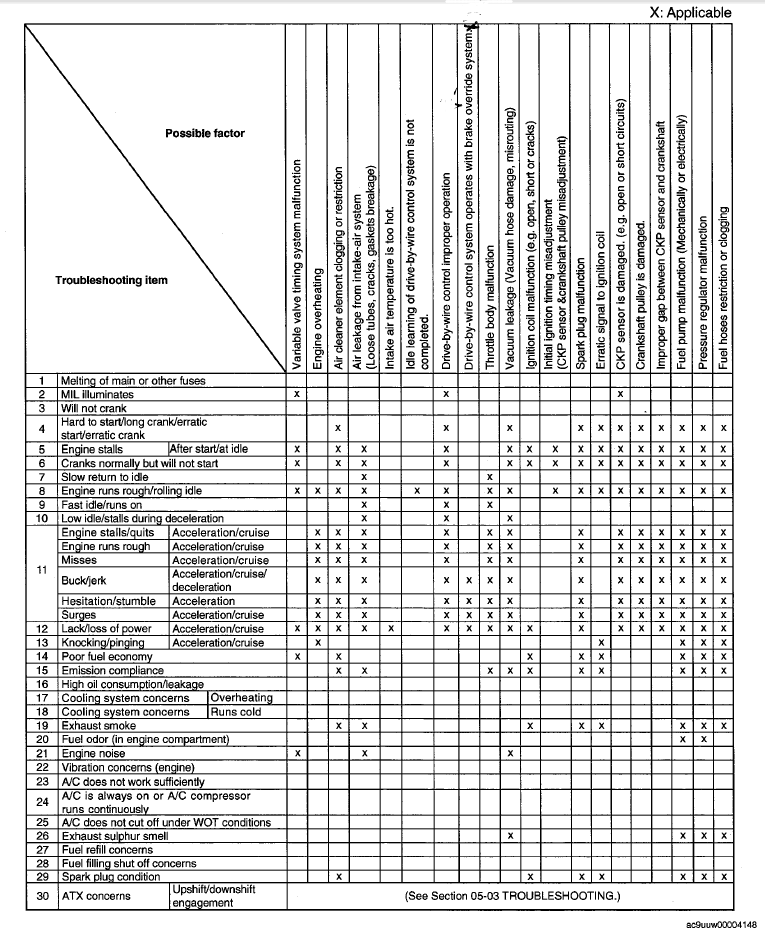

Fig 2: Quick Diagnostic Chart - MZI-3.7 (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

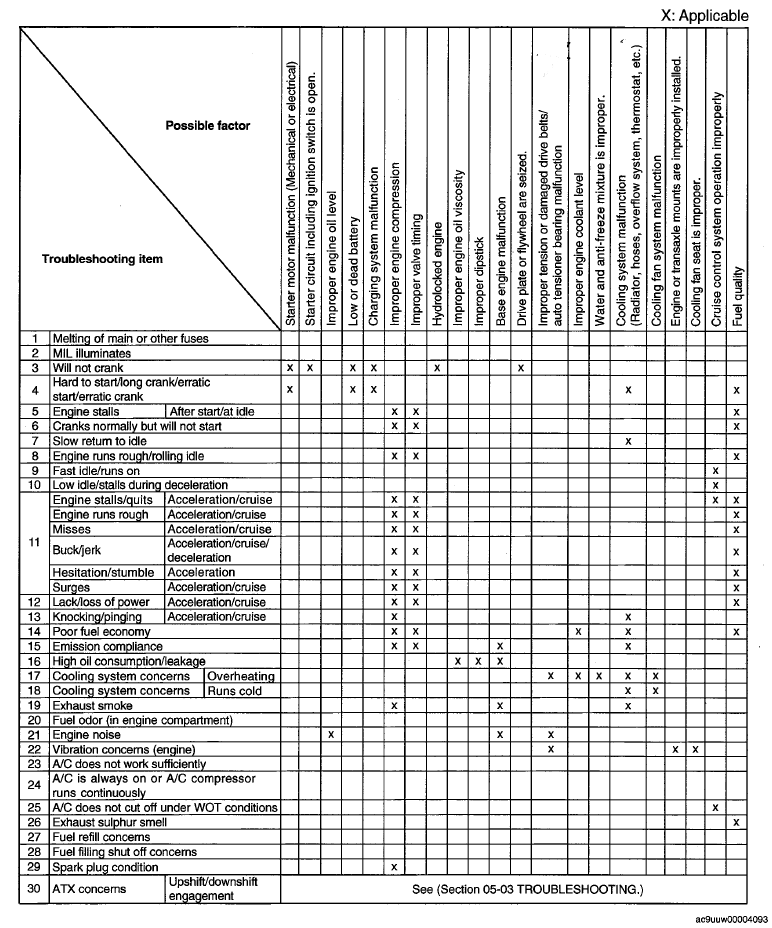

Fig 3: Quick Diagnostic Chart - MZI-3.7 (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

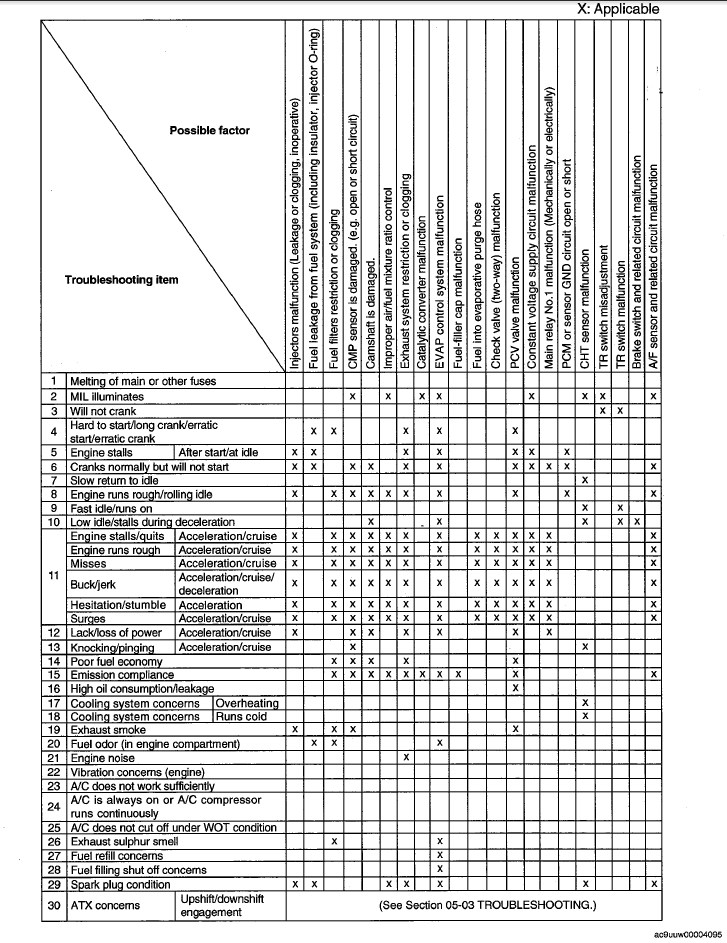

Fig 4: Quick Diagnostic Chart - MZI-3.7 (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
