Front Door Key Cylinder Removal/Installation: Notes

To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in} .
Disconnect the negative battery cable.
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION ).
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION ).
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
5. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION ).

  Fig 1: Identifying Front Door Glass Adjusting Dimension
Remove the service hole cover.

Fig 2: Removing Service Hole Cover
Remove the tab, then remove the door lock-link bracket. (Driver's door) (See ROD PROTECTOR INSTALLATION NOTE ).

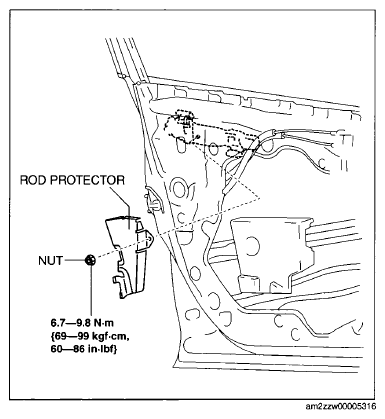

Fig 3: Rod Protector Nut With Torque Specifications
Remove the service hole cover.
Remove the screw from the service hole.
NOTE:
- The screw cannot be removed because of the stopper.
Fig 4: Identifying Service Hole Cover

Fig 5: Identifying Service Hole Cover Screw
Lift the clip in the direction of the arrow (1), and pull out the key rod in the direction of the arrow (2).
Press the tab on the front outer handle bracket in the direction of the arrow.

Fig 6: Pulling Out Key Rod

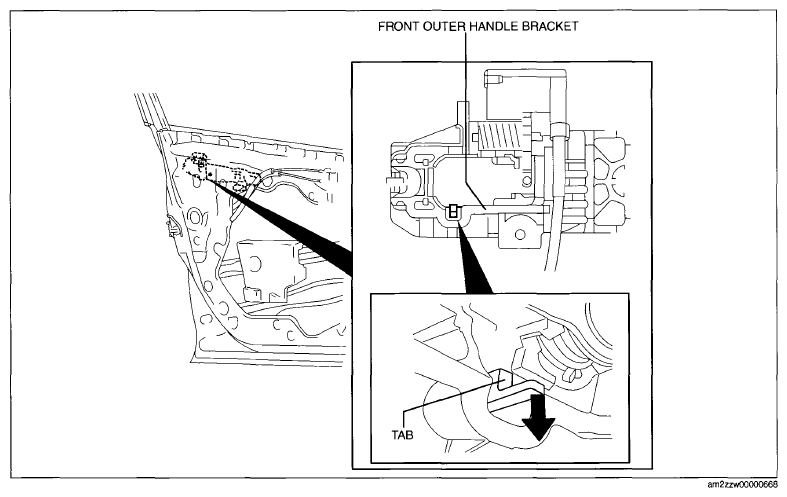

Fig 7: Pressing Front Outer Handle Bracket Tab
Maintaining the condition in procedure 9, remove the front key cylinder.

Fig 8: Removing Front Door Key Cylinder
Using a tape-wrapped fastener remover, press up the collar cap in the direction of the arrow shown in the arrow, press aside the front door key cylinder tabs (1), and remove the collar cover from the front door key cylinder.
Install in the reverse order of removal.

Fig 9: Removing Front Door Key Cylinder Collar Cover
