Power Window Main Switch Disassembly/Assembly

Disconnect the negative battery cable.
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
Remove the driver's side front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
Remove the power window main switch. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY ).
Disassemble in the order shown in the figure.
Assemble in the reverse order of disassembly.

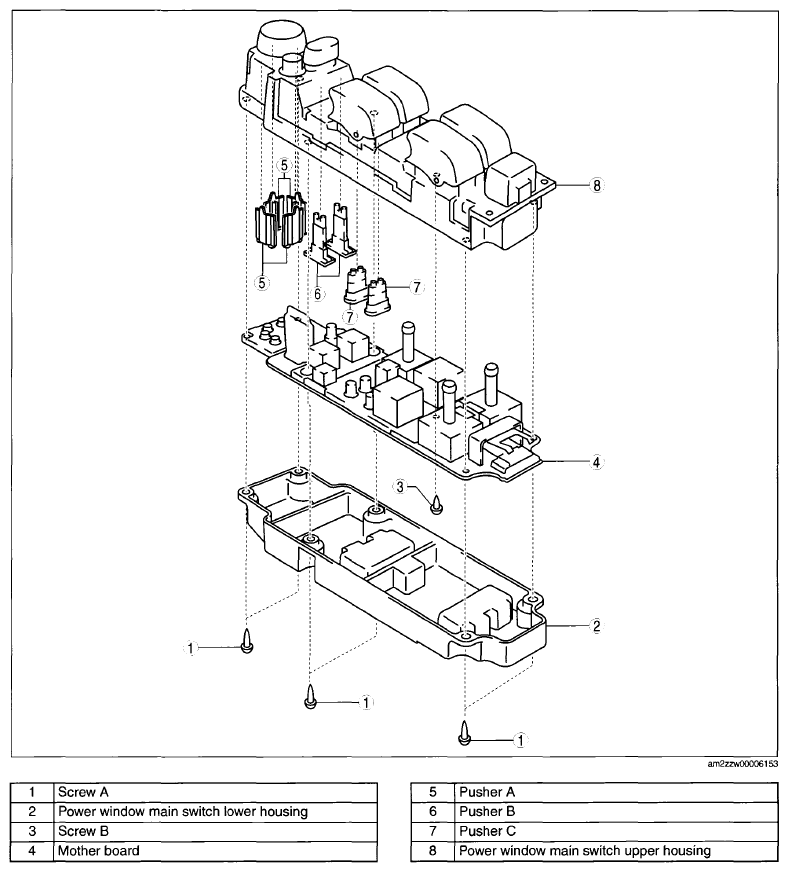

Fig 1: Exploded View Of Power Window Main Switch
