DSC Off Switch Removal/Installation

  1. Remove the switch panel in the direction of the arrow shown in the figure.
  2. Disconnect the connector.
    Fig 1: Removing Switch Panel
    G09132558

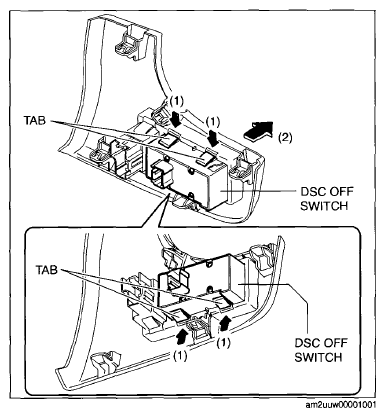

  3. Press the tabs in the direction of the arrow (1) shown in the figure and remove the DSC OFF switch in the direction of the arrow (2).
  4. Install in the reverse order of removal.
    Fig 2: Pressing Tabs
    G09132559
