Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
  2. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION ).
  3. Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION ).
  4. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION ).
  5. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION ).
  6. Disconnect the rear ABS wheel-speed sensor connector.
  7. Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.
  8. Remove in the order indicated in the table.
  9. Install in the reverse order of removal.
    Fig 1: Locating Rear ABS Wheel-Speed Sensor
    G09132553

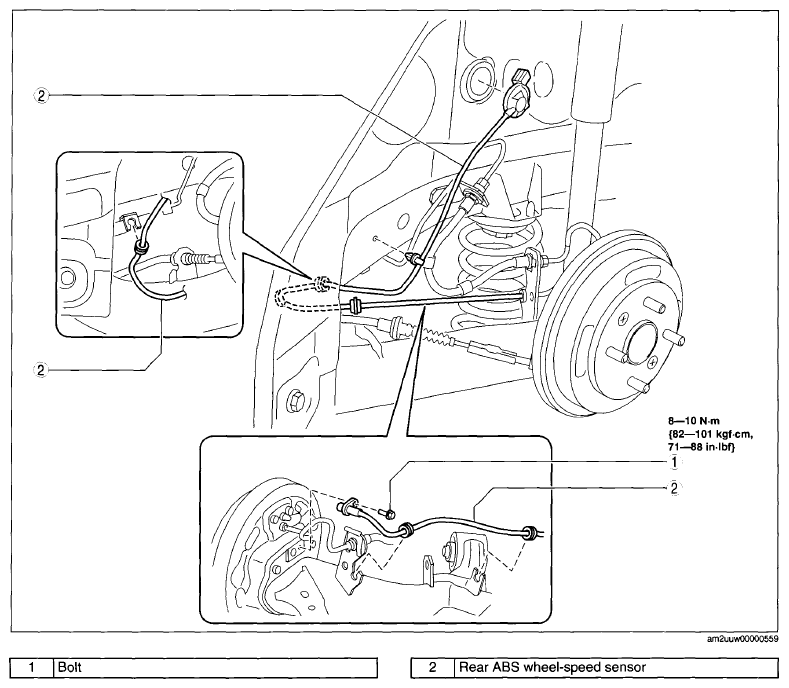

    Fig 2: Rear ABS Wheel-Speed Sensor And Mounting Bolts With Torque Specification
    G09132554
