Control System Wiring Diagram

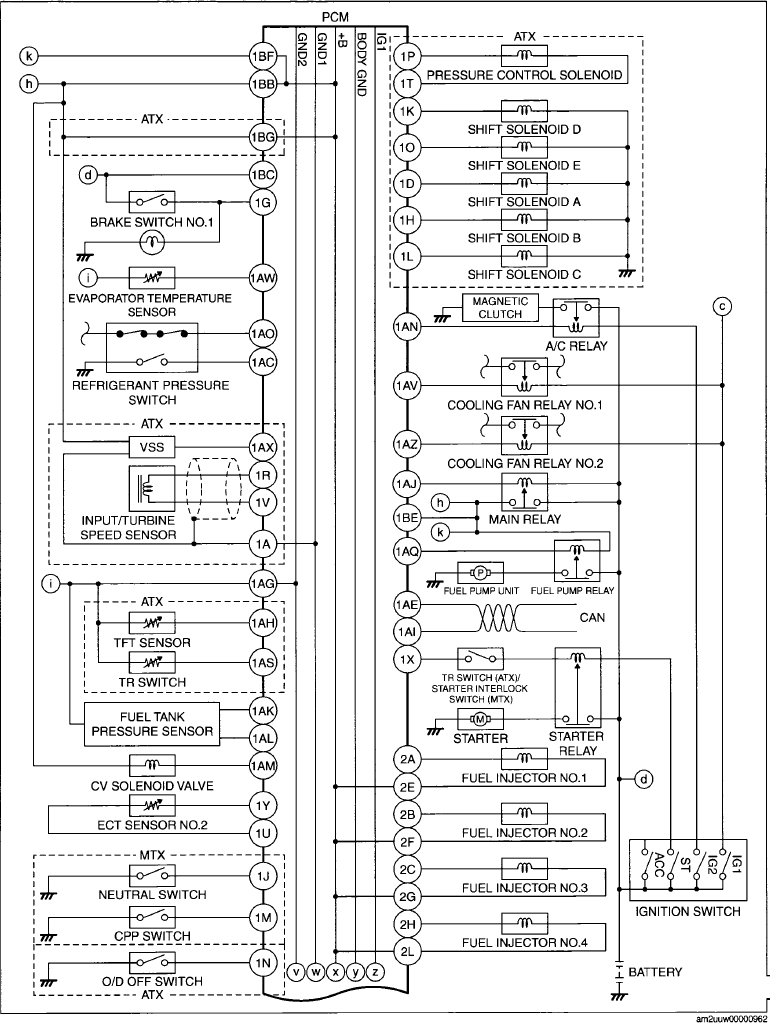

Fig 1: Control System Wiring Diagram (1 Of 2)

G09130310

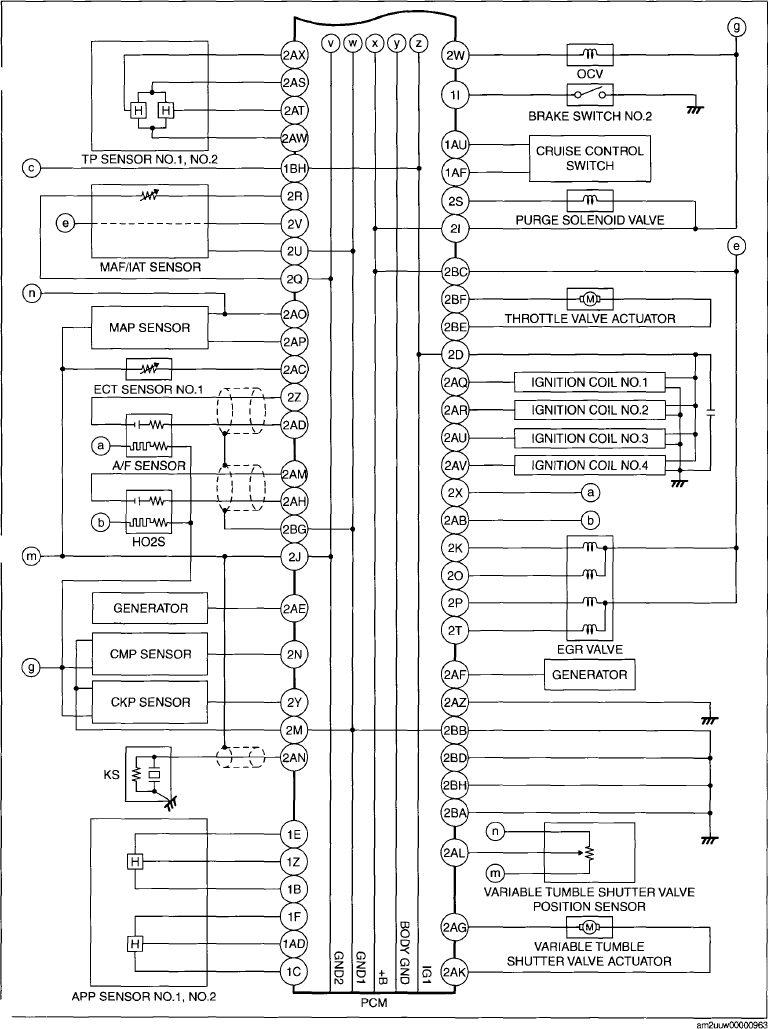

Fig 2: Control System Wiring Diagram (2 Of 2)

G09130311
