EVAP system malfunction judgment
EVAP system malfunction judgment
M-MDS detects the small/large leak or blockage based on fuel tank pressure at the end of EVAP Test.

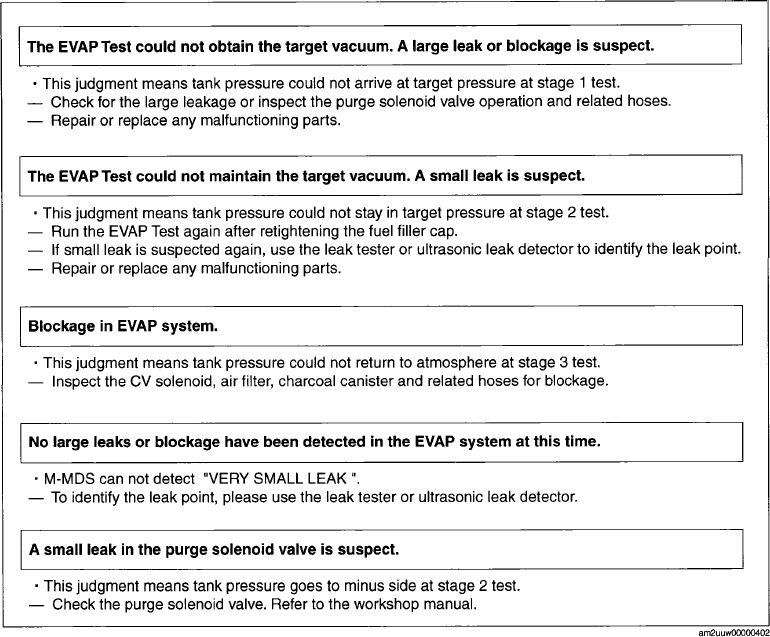

Fig 1: EVAP System Malfunction Judgment Procedure Chart
