Fan control module signal

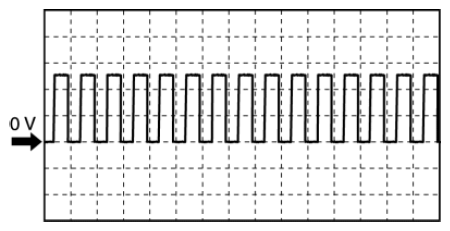

Fig 1: Fan Control Module Signal Waveform Graph

PCM terminals

• 1AE (+)-body ground (-)

  Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

  Vehicle condition

• Idle after warm up
