Keyless Entry System Wiring Diagram [Advanced Keyless Entry And Push Button Start System]

WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

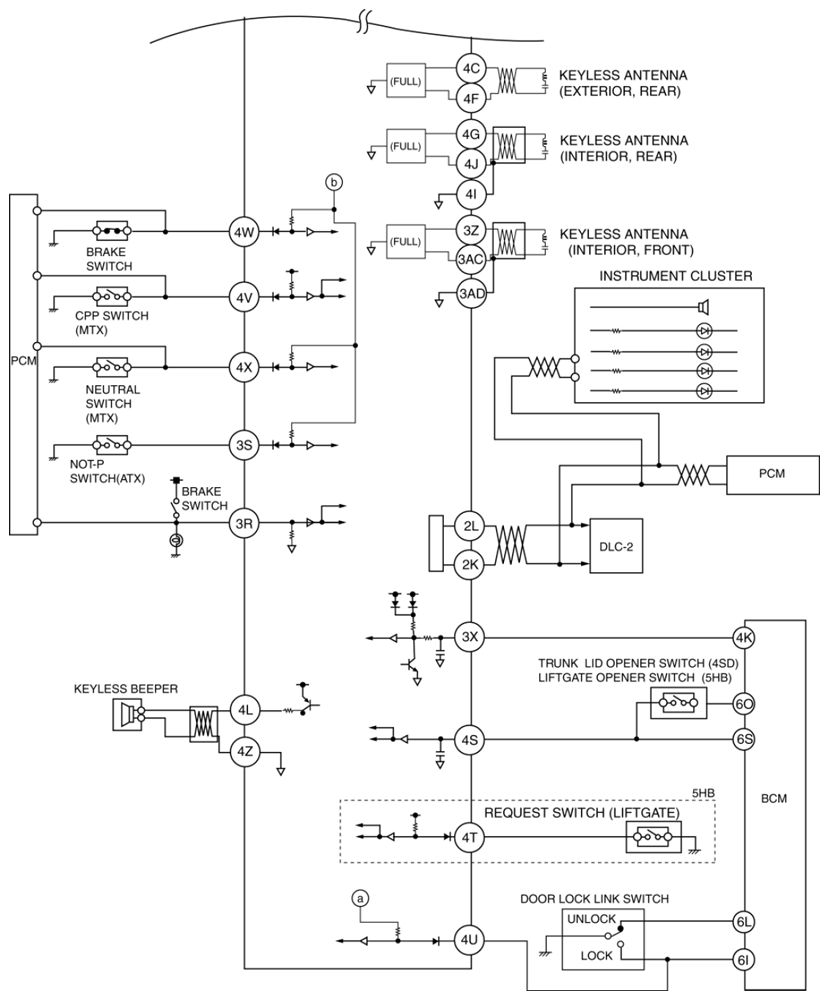

Fig 1: Keyless Entry System Wiring Diagram - Advanced Keyless Entry And Push Button Start System (1 Of 2)

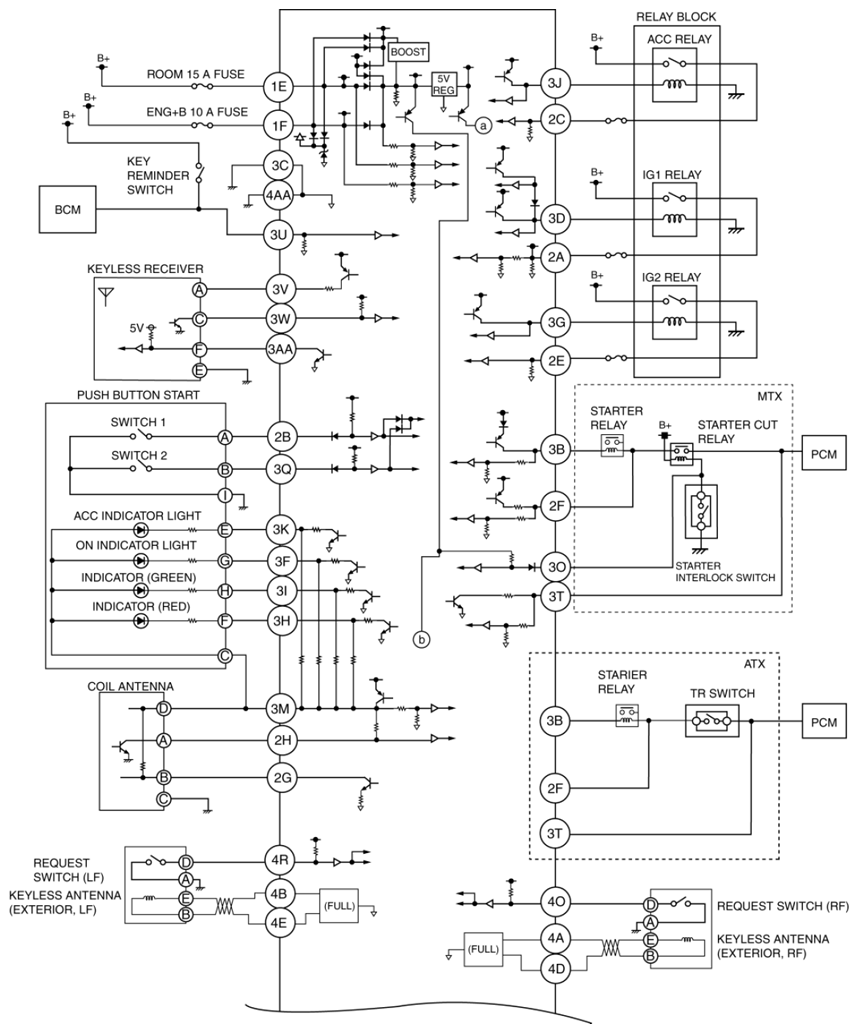

Fig 2: Keyless Entry System Wiring Diagram - Advanced Keyless Entry And Push Button Start System (2 Of 2)
