Forced Ignition On [With Advanced Keyless Entry And Push Button Start System]

NOTE:

In order to perform a forced ignition ON, the M-MDS (IDS) is necessary. If the servicing is being done outside of an Authorized Mazda dealership, contact an Authorized Mazda dealership for instructions.
The forced ignition ON procedure forces a power supply to each part when no power is available even after the ignition switch has been operated. However, the engine cannot be started and the steering cannot be unlocked.
When performing a forced ignition ON procedure, remove all advanced keys from the vehicle. If an advanced key is left in the vehicle, the forced ignition ON procedure cannot be done.

Verify that there are no advanced keys in the vehicle.
Get PCM part number from As-built site.
Connect the M-MDS (IDS) to the DLC-2.

Fig 1: Identifying DLC-2
Courtesy of MAZDA MOTORS CORP.
Manual vehicle identification.
- Select "Manual Vehicle Entry".
Select the "All other" from Vehicle list.
Input the PCM part number on the following screen.

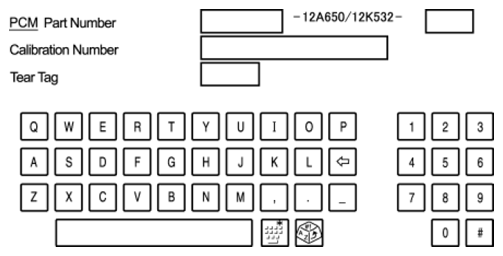

Fig 2: Screen Display - Input PCM Part Number
Courtesy of MAZDA MOTORS CORP.
After the vehicle is identified, select the following items from the initialization screen of the IDS.
- Select "Body".
- Select "Special Ignition ON".
Perform the procedure according to the directions on the screen.
Delete session with keeping ignition ON.
Normal vehicle identification.
