Front Fog Light Relay Installation Note

  1. Install the front fog light relay case to the shroud panel with the front fog light relay cover facing upward.
    CAUTION:
    • If the front fog light relay case is installed to the shroud panel with the cover downward, water may penetrate the cover and the front fog light relay may not operate normally. Install the front fog light relay case with the cover facing upward.

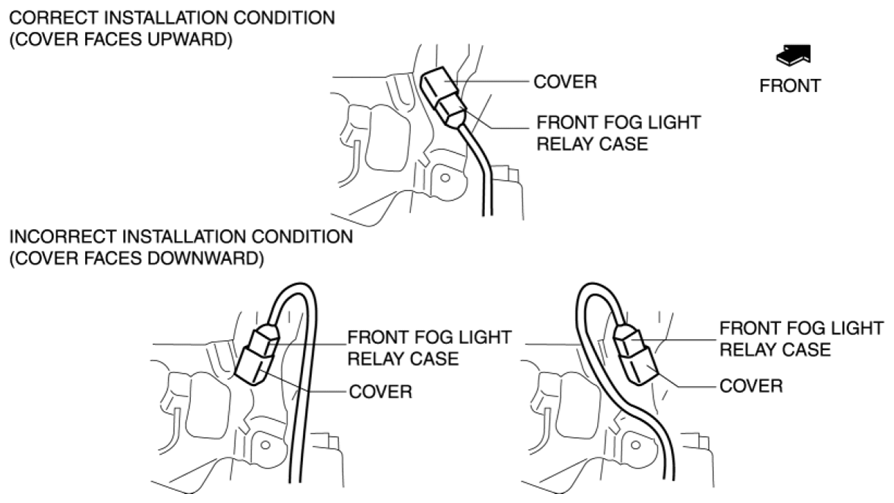

    Fig 1: Identifying Front Fog Light Relay Case With Cover Facing Upward
    G08159513Courtesy of MAZDA MOTORS CORP.
