Front Fog Light Relay Removal/Installation: Notes

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the front mudguard.(RH) (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  3. Remove the front fog light relay case.

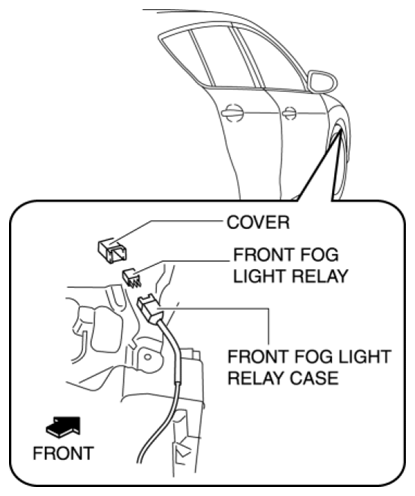

    Fig 1: Removing Front Fog Light Relay Case
    G08159512Courtesy of MAZDA MOTORS CORP.
  4. Remove the cover.
  5. Remove the front fog light relay.
  6. Install in the reverse order of removal. (See FRONT FOG LIGHT RELAY INSTALLATION NOTE .)
