Ignition Switch Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Detach the tab.

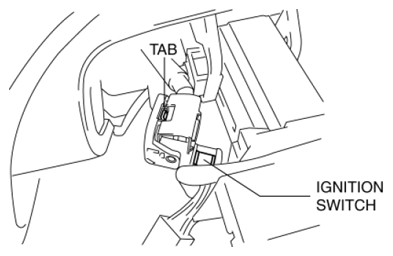

    Fig 1: Identifying Ignition Switch And Tab
    G08159489Courtesy of MAZDA MOTORS CORP.
  4. Pull the pin in the direction of the arrow shown in the figure and release the lock.

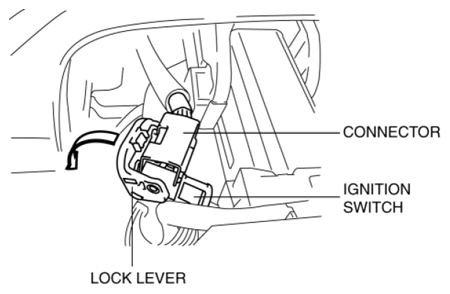

    Fig 2: Pulling Pin
    G08159490Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the ignition switch connector and key interlock solenoid connector.

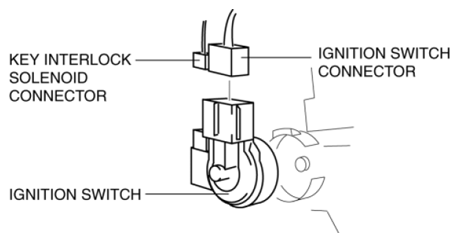

    Fig 3: Identifying Ignition Switch Connector And Key Interlock Solenoid Connector
    G08159491Courtesy of MAZDA MOTORS CORP.
  6. Remove the tabs.

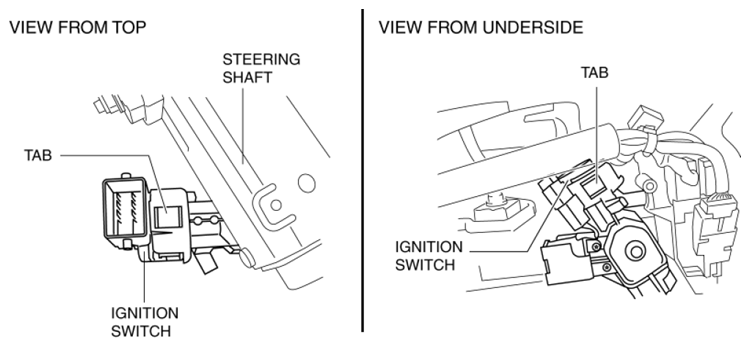

    Fig 4: Identifying Ignition Switch Tabs
    G08159492Courtesy of MAZDA MOTORS CORP.
  7. Remove the ignition switch from the steering shaft.
  8. Install in the reverse order of removal.
