Key Reminder Switch Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the key reminder switch connector.

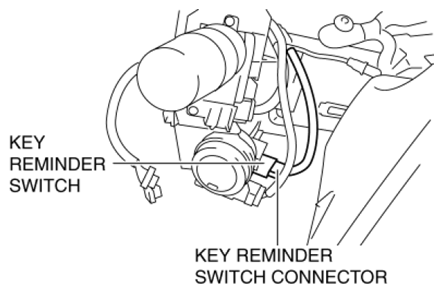

    Fig 1: Identifying Key Reminder Switch Connector
    G08159495Courtesy of MAZDA MOTORS CORP.
  4. Detach the key reminder switch tabs.

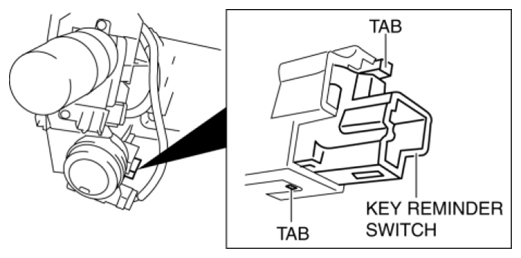

    Fig 2: Detaching Key Reminder Switch Tabs
    G08159496Courtesy of MAZDA MOTORS CORP.
  5. Remove the key reminder switch.
  6. Install in the reverse order of removal.
