Dynamic Stability Control Off Switch Inspection
- Remove the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION .)

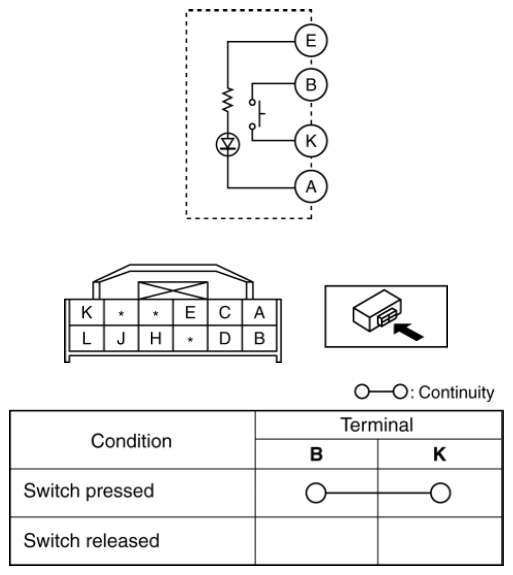

- Verify that the continuity between the DSC OFF switch terminals is as indicated in the table.
- If not as indicated in the table, replace the DSC OFF switch.
- Apply battery voltage to DSC OFF switch terminal E, and connect terminal A to ground.
- Verify that the LED illuminates.
- If there is any malfunction, replace the DSC OFF switch.
