Engine Control System Location Index

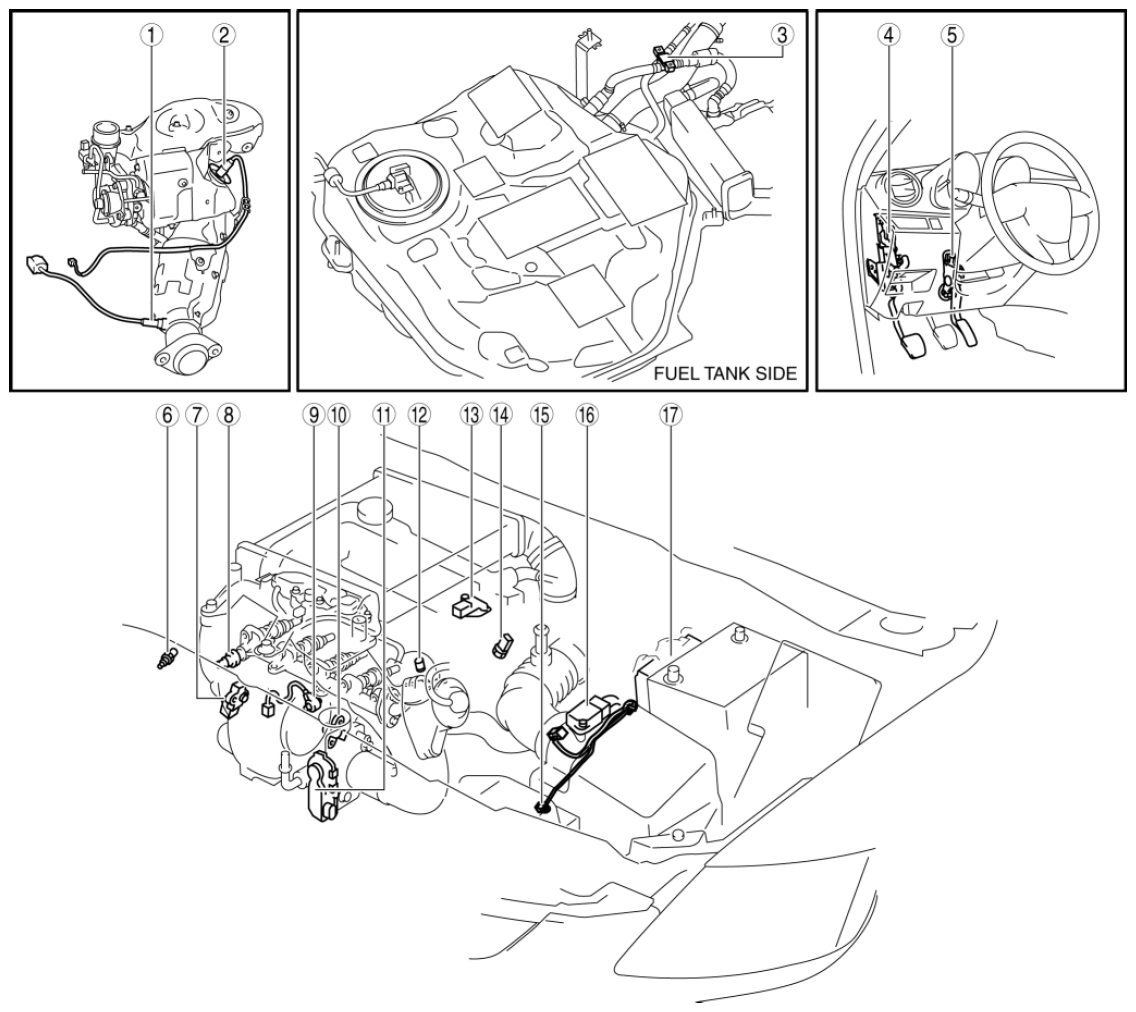

Fig 1: Identifying Engine Control System Components Location [MZR 2.3 DISI Turbo] (1 Of 2)
G08155422

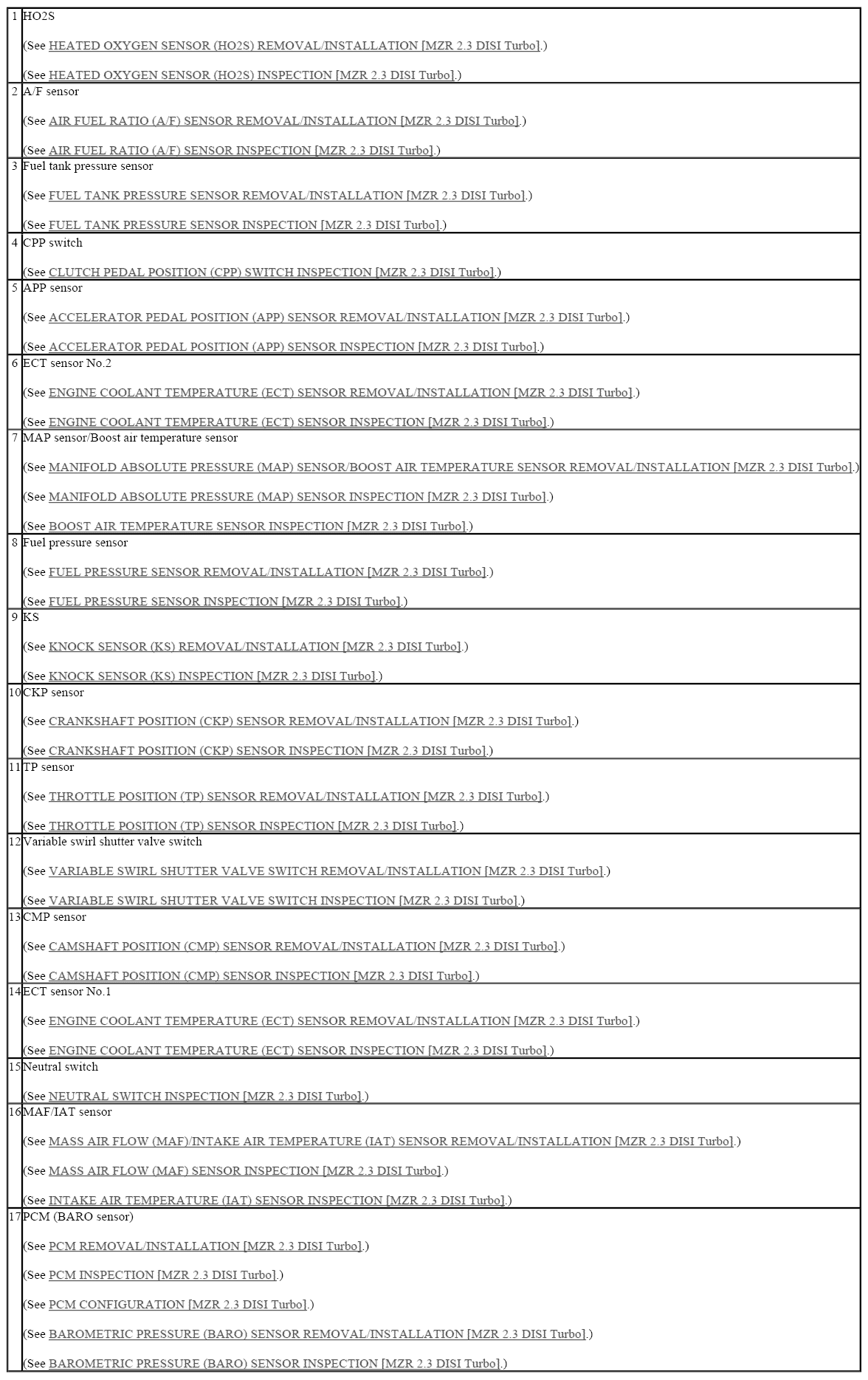

Fig 2: Identifying Engine Control System Components Location [MZR 2.3 DISI Turbo] (2 Of 2)
G08155423
